Center Console Beverage Holder Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the armrest and related parts.
  1. Remove the rear section of the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION  ).
  2. Disconnect the connector holder from underneath the rear section of the center console.
  3. Remove the screws, and detach the light bulb socket connector (A), then remove the center console beverage holder (B).

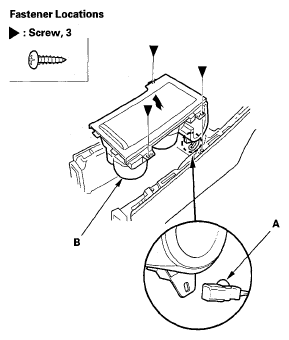

    Fig 1: Identifying Light Bulb Socket Connector And Center Console Beverage Holder
    G05462163Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the beverage holder in the reverse order of removal.
