Fuel Pipe Protector Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the clips, then remove the fuel pipe protector (A).

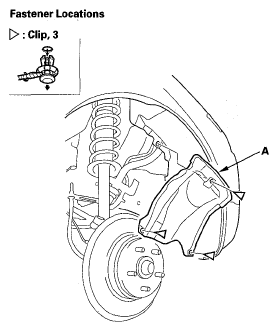

Fig 1: Identifying Fuel Pipe Protector Fastener Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the protector in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
