Front Strake Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the body.
  1. Remove the bolts (A) and release the hooks (B), then remove the front strakes (C).

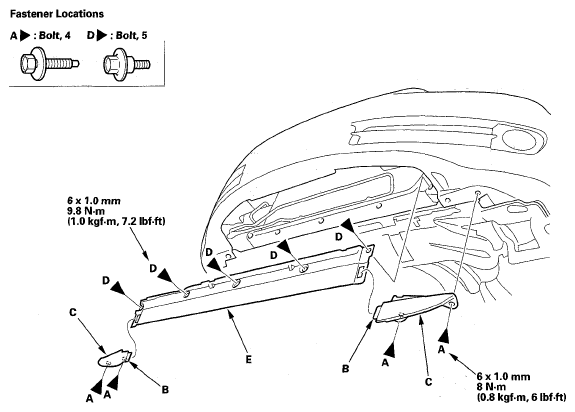

    Fig 1: Front Strakes Fastener Locations With Torque Specifications
    G05462331Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (D), then remove the front air guide plate (E).
  3. Install the strakes and plate in the reverse order of removal.
