Master Cylinder Inspection

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and note these items:
- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.

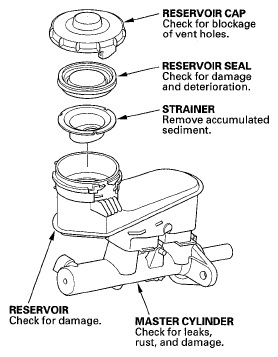

  Fig 1: Identifying Reservoir Cap, Reservoir Seal, Strainer And Master Cylinder
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
