Brake Pedal Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration shows except Type-S model.

Remove the lock pin (A) and joint pin (B).

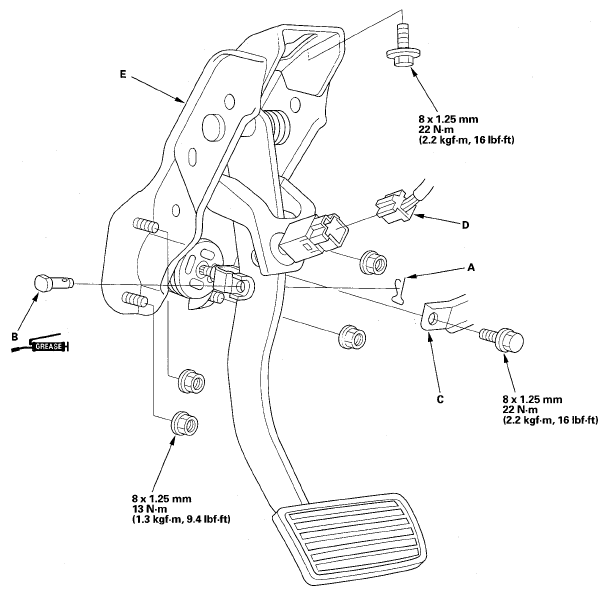

Fig 1: Brake Pedal Position Switch Connector, Brake Pedal Bracket Support Member And Lock Pin With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake pedal bracket support member (C).
Disconnect brake pedal position switch connector (D).
Remove the brake pedal with bracket (E).
Install the brake pedal bracket in the reverse order of removal.
Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
