Brake Hose Replacement: Rear

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel.

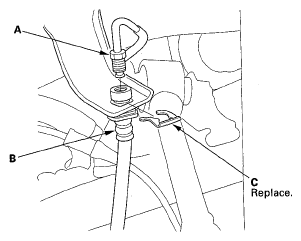

Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C).

Fig 1: Identifying Brake Line, Brake Hose And Brake Hose Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (A), and disconnect the brake hose (B) from the caliper.

Fig 2: Identifying Brake Hose And Brake Hose Bracket Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake hose bracket mounting bolt (C), then remove the brake hose.
Install the brake hose (A) with the brake hose bracket mounting bolt (B).

Fig 3: Brake Hose, Banjo Bolt And Sealing Washers With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D).
Install a new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C). Do not twist the brake hose.

Fig 4: Installing Brake Hose Clip To Brake Hose On Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces of the brake disc/drum and the inside of the wheel, then install the rear wheels.
