Brake Booster Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the master cylinder (see MASTER CYLINDER REPLACEMENT ).
Disconnect the brake booster vacuum hose (A) from the brake booster (B).

Fig 1: Identifying Brake Booster Vacuum Hose And Brake Booster
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (A) and clamps (B).

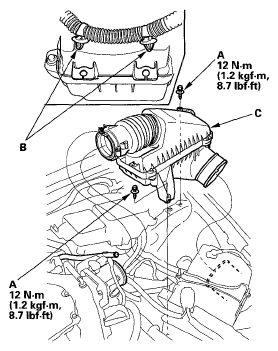

Fig 2: Air Cleaner And Clamps With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (C).
Remove the primary and secondary brake lines (A) from the hose clamp (B).

Fig 3: Identifying Brake Lines And Hose Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the lock pin (A) and the joint pin (B), then disconnect the yoke (C) from the brake pedal.

Fig 4: Lock Pin, Joint Pin, Yoke And Brake Booster Mounting Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake booster mounting nuts (D).
Remove the brake booster (A) from the engine compartment.
NOTE:
- Be careful not to damage the booster surfaces and threads of the booster stud bolts.
- Be careful not to bend or damage the brake lines.

  Fig 5: Removing Brake Booster From Engine Compartment
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the brake booster in the reverse order of removal, and note these items:
- Install the master cylinder after installing the brake booster (see MASTER CYLINDER REPLACEMENT ).
- Replace the master cylinder rod seal.
- Check the brake pedal height and free play after installing the master cylinder, and adjust it if necessary (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
- Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
