AM/FM Antenna Amplifier-Rear Window Defogger Coil Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left C-pillar trim (see C-PILLAR TRIM ).

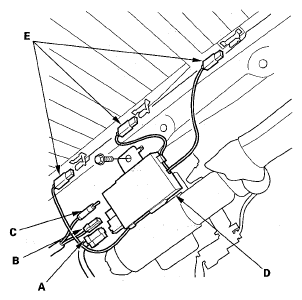

  2. Disconnect the 1P connector (A), 1P connector (B), and AM/FM antenna lead (C) from the AM/FM antenna amplifier-rear window defogger coil (D) and the three window connectors (E).
    Fig 1: Identifying Window Connectors
    G05463103Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect all connectors, then remove the bolt and AM/FM antenna amplifier-rear window defogger coil.
  4. Install the AM/FM antenna amplifier-rear window defogger coil in the reverse order of removal.
