Circuit Diagram

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

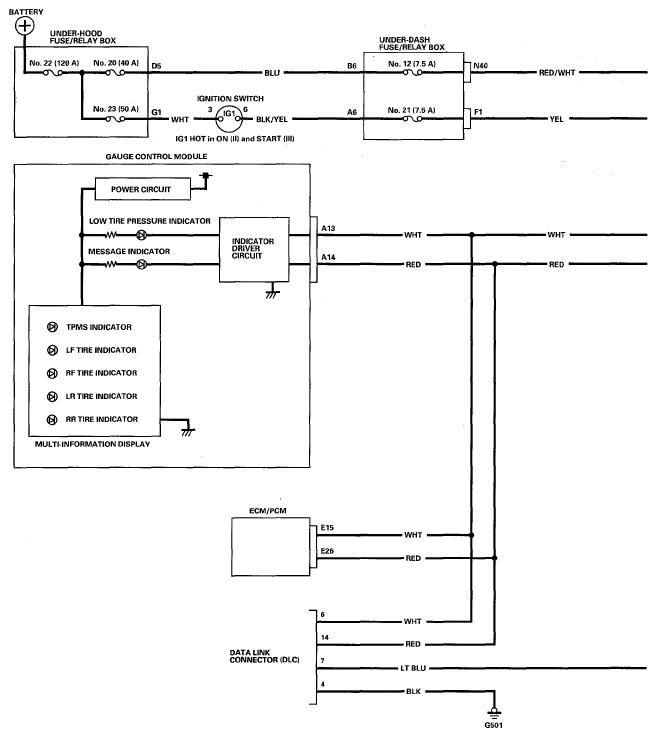

Fig 1: TPMS - Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

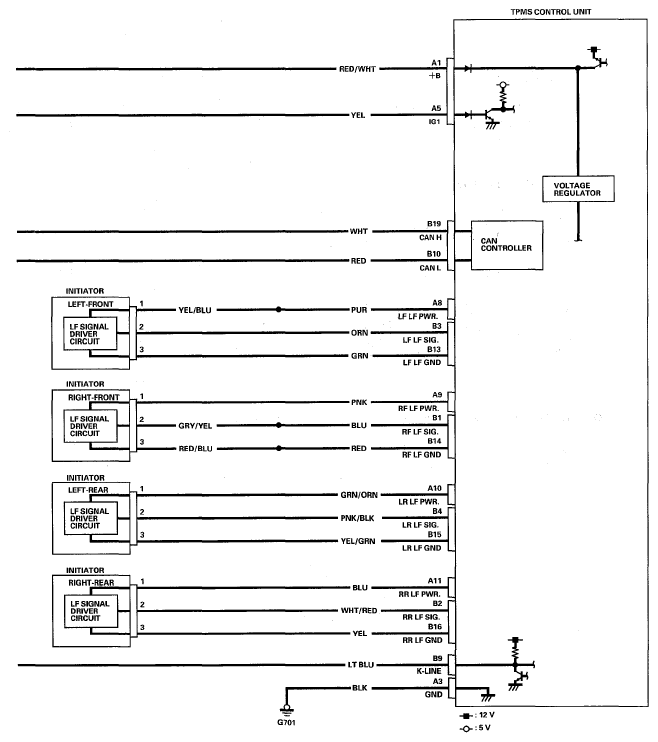

Fig 2: TPMS - Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

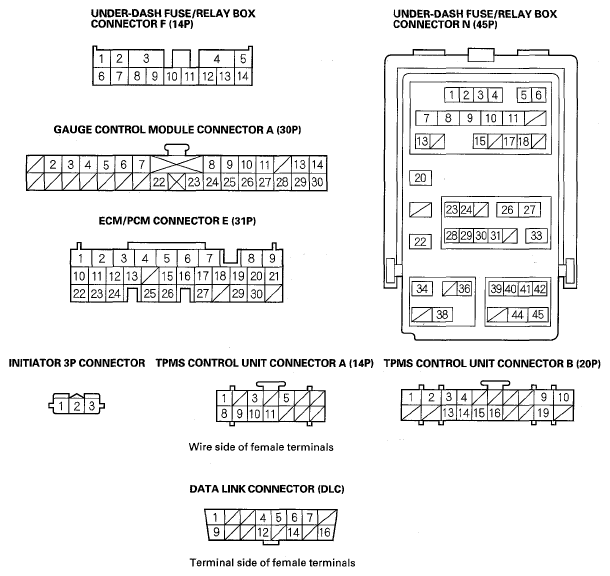

Fig 3: TPMS - Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
