Emblem/Sticker Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing the emblems, take care not to scratch the body.
  1. To remove the front "A" emblem, remove the front grille center molding (see FRONT GRILLE REPLACEMENT  ).
  2. Clean the body surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
  3. Apply the emblems/sticker where shown. When installing the ULEV sticker on the inside surface of the rear door quarter glass, align the sticker application tape with the edge of the glass mark as shown, then press the sticker into place, and remove the application tape.
  4. After installing the front "A" emblem, reinstall the front grille center molding (see FRONT GRILLE REPLACEMENT  ).

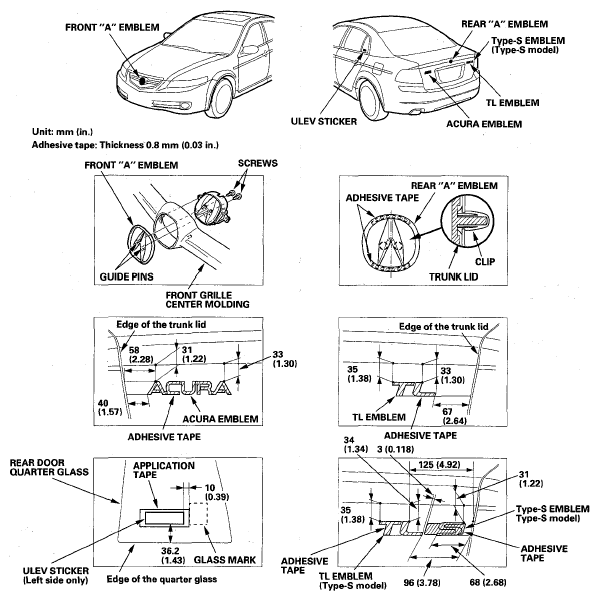

    Fig 1: Identifying Emblem/Sticker Location
    G05462330Courtesy of AMERICAN HONDA MOTOR CO., INC.
