Driver's Seat Position Sensor

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

The driver's seat position sensor (M) is under the driver's seat on the left side. When the driver's seat is moved to its full forward position, the deployment of the driver's airbag is moderated to decrease its force of impact during a front-end collision.

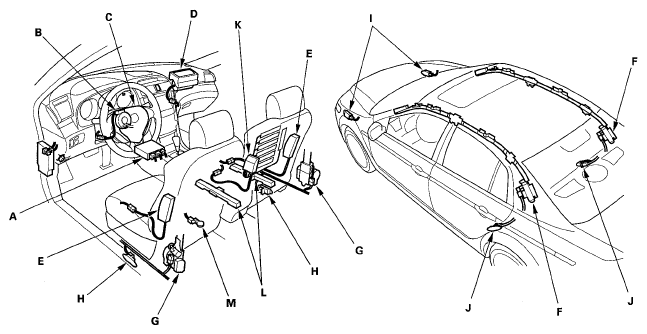

Fig 1: Identifying SRS Components Location
G05463384Courtesy of AMERICAN HONDA MOTOR CO., INC.
