Component Replacement/Inspection After Deployment: Notes

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before doing any SRS repairs, use the HDS SRS Menu Method to check for DTCs; refer to the DTC Troubleshooting Index for the less obvious deployed parts (seat belt tensioners, front impact sensors, side impact sensors, etc.).
Do not replace the ODS unit unless it is physically damaged or a specific fault was found during DTC troubleshooting

After a collision where the seat belt tensioners deployed, replace these items:

SRS unit
Seat belt tensioners
Front impact sensors

After a collision where the front airbag(s) deployed, replace these items:

SRS unit
Deployed airbag(s)
Seat belt tensioners
Front impact sensors

After a collision where the side airbag(s) deployed, replace these items:

SRS unit
Deployed side airbag(s)
Side impact sensor(s) (first) for the side(s) that deployed

After a collision where the side curtain airbag(s) deployed, replace these items for the side(s) that deployed:

SRS unit
Deployed side curtain airbag(s)
Side impact sensor(s) (first)
Side impact sensor(s) (second)
Roof trim
A-pillar trim
B-pillar upper trim
C-pillar trim
Front grab handle
Any related trim clips
Sunvisor

After a moderate to severe side or rear collision, inspect for any damage on the side curtain airbag or other related components. Replace the components as needed.

A-Pillar

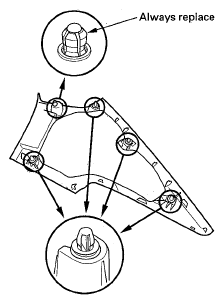

Fig 1: Identifying Clip Of A-Pillar

Courtesy of AMERICAN HONDA MOTOR CO., INC.

B-Pillar

Fig 2: Identifying Clip Of B-Pillar

Courtesy of AMERICAN HONDA MOTOR CO., INC.

C-Pillar

Fig 3: Identifying Clip Of C-Pillar

Courtesy of AMERICAN HONDA MOTOR CO., INC.

During the repair process, inspect these areas:

Inspect all the SRS wire harnesses. Replace, do not repair, any damaged harnesses.
Inspect the cable reel for heat damage. If there is any damage, replace the cable reel.

After the vehicle is completely repaired, turn the ignition switch ON (II). If the SRS indicator comes on for about 6 seconds and then goes off, the SRS is OK. If the indicator does not function properly, use the HDS SRS Menu Method to read the DTC. If you can not retrieve a code, go to SRS Symptom Troubleshooting.
