Select/Reset/Information Switch Test/Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Disconnect the 20P connector (A) from the cable reel.
    Fig 1: Identifying 20P Connector
    G05462801Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminal in each switch position according to the table.

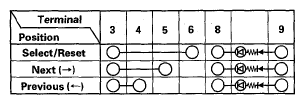

    Fig 2: Continuity Specifications Chart
    G05462802Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the switch.
