Climate Control Door Positions

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

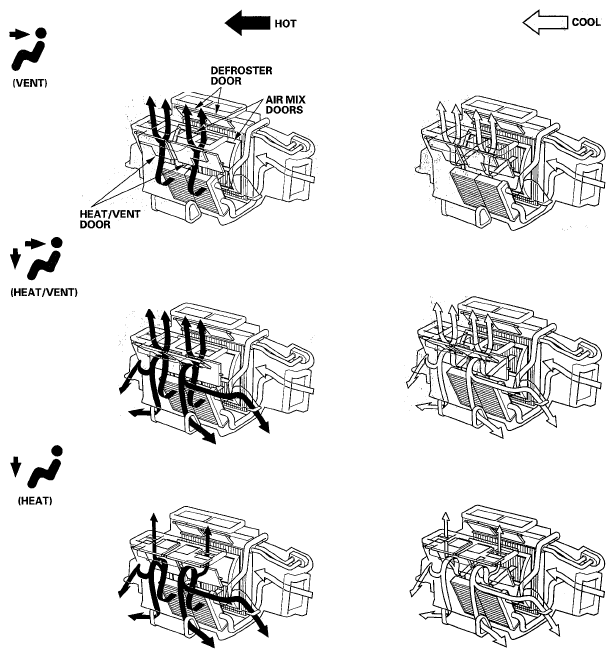

Fig 1: Climate Control Door Positions (1 Of 2)
G05462381Courtesy of AMERICAN HONDA MOTOR CO., INC.

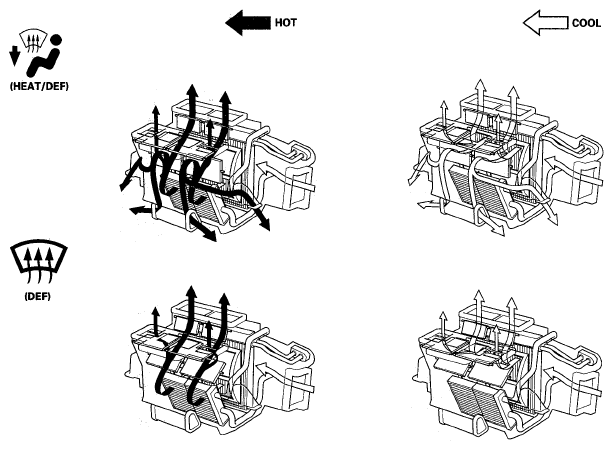

Fig 2: Climate Control Door Positions (2 Of 2)
G05462382Courtesy of AMERICAN HONDA MOTOR CO., INC.
