Wiper Arm/Nozzle Adjustment

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Wiper arms stop position

When the wiper arms stop at automatic stop position, confirm the wiper arms are at the standard position.
1. Position at about 1.5 in. (40 mm) from the top of cowl cover (A)
2. Position at about 1.2 in. (33 mm) from the top of cowl cover (A)
Washer nozzle position
When you jet the washer fluid, confirm 50% or more of the jet fluid splashes down within the slash area. If there are not standard positions, adjust the nozzles.
1. c: Position at about 11.6 in. (295 mm) from the top of black ceramic (B) at lower windshield
2. d: Position at about 11.6 in. (295 mm) from the top of black ceramic (B) at lower windshield
3. e: Position at about 11.2 in. (285 mm) from the windshield center line (C)

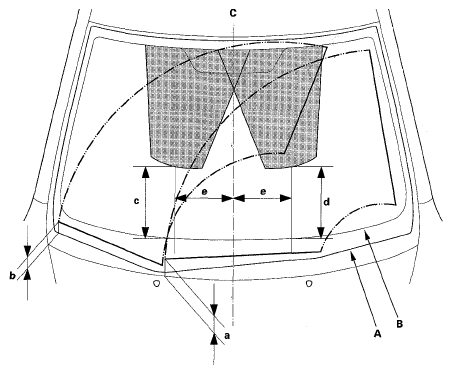

  Fig 1: Identifying Wiper Arm/Nozzle Spry Position
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
