Washer Tube Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the windshield washer nozzles and clips, then remove the tube.

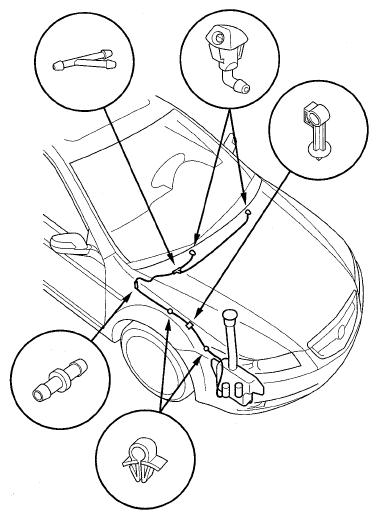

    Fig 1: Identifying Washer Tube
    G05462782Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal. Take care not to pinch the washer tube. Check the windshield washer operation.
