Washer Reservoir Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the washer tube (A) and washer motor 2P connector (B).
Washer reservoir capacity: 2.5 L (2.6 US qt) (USA models)

4.5 L (4.8 US qt) (Canada models)

Fig 1: Identifying Washer Tube And Washer Motor 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

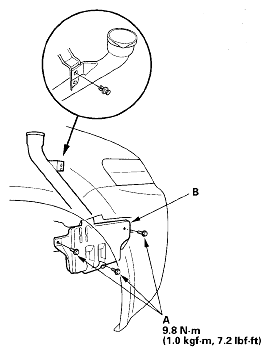

Remove the clip and three bolts (A), then remove the washer reservoir (B).

Fig 2: Washer Reservoir Clip And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reservoir in the reverse order of removal.
