Washer Motor Test

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the washer motor (B).

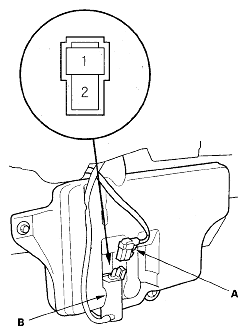

    Fig 1: Identifying Washer Motor And 2P Connector
    G05462775Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to the No. 1 terminal and ground to the No. 2 terminal of the washer motor. The motor should run.
    • If the motor does not run or fails to run smoothly, replace it.
    • If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.
