Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the bolts (A) and the intake air cover (B).

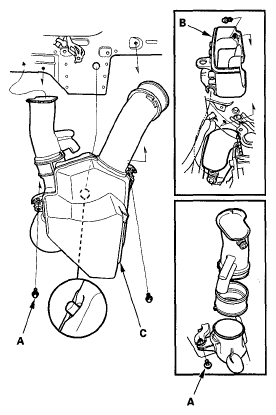

    Fig 1: Identifying Intake Air Cover And Bolts
    G05495305Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the resonator (C).
  4. Install the parts in the reverse order of removal.
