Air Cleaner Removal/Installation

  1. Remove the bolts (A) and clamps (B).

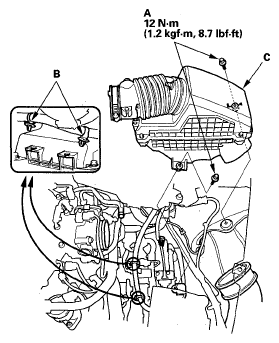

    Fig 1: Air Cleaner Clamps And Bolts With Torque Specifications
    G05495303Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
