Sealing Bolt Installation

NOTE: When installing the sealing bolt, always use a new washer.

FRONT

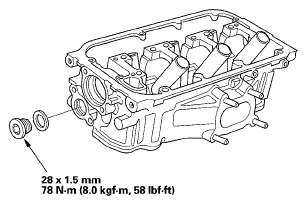

Fig 1: Sealing Bolt (Front) With Torque Specifications
G05494099Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR

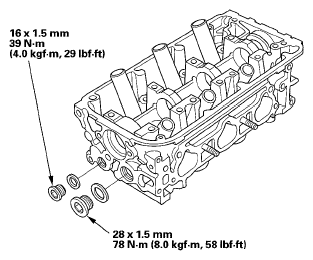

Fig 2: Sealing Bolt (Rear) With Torque Specifications
G05494100Courtesy of AMERICAN HONDA MOTOR CO., INC.
