Rocker Arm Assembly Removal

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Loosen the adjusting screws (A).

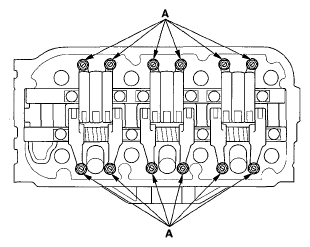

    Fig 1: Identifying Adjusting Screws
    G05494044Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the rocker arm assembly.
    1. Loosen the rocker shaft mounting bolts two turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
    2. When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

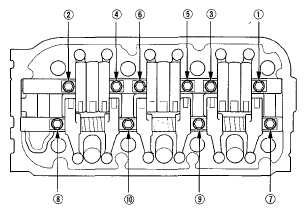

      Fig 2: Identifying Loosening Sequence Of Rocker Shaft Mounting Bolts
      G05494045Courtesy of AMERICAN HONDA MOTOR CO., INC.
