EVAP Canister Replacement

  1. Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).
  2. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).
  3. Disconnect the connectors (A) and the hoses (B).

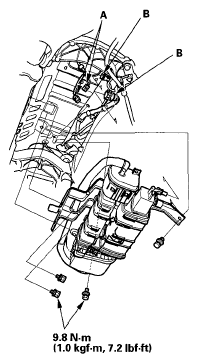

    Fig 1: Connectors, Hoses And EVAP Canister With Torque Specifications
    G05495371Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EVAP canister (A).
    Fig 2: EVAP Canister With Torque Specifications
    G05495372Courtesy of AMERICAN HONDA MOTOR CO., INC.
