Acura
>>
2007
>>
RL
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Reminder Systems
>>
Circuit Diagram
Circuit Diagram

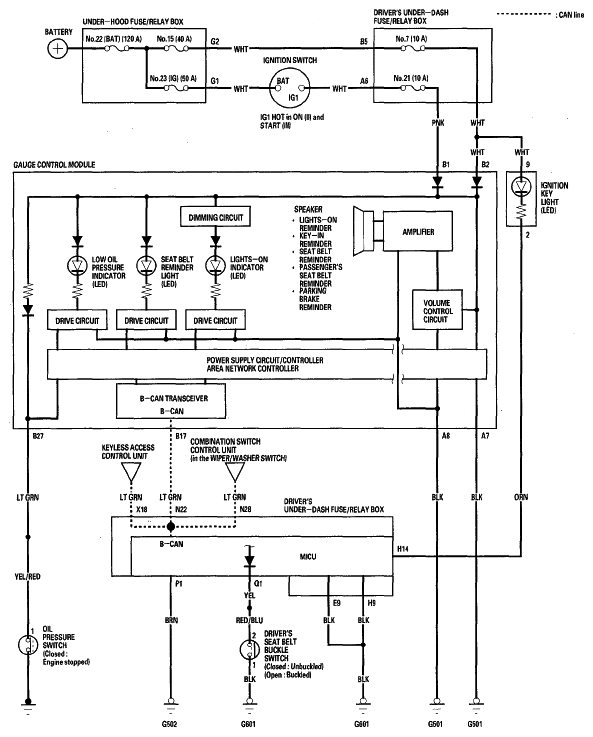

Fig 1: Reminder Systems - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
