Roof and Trunk

Fig 1: Identifying Relay And Control Unit Locations - Roof And Trunk (1 Of 2)
G05496722

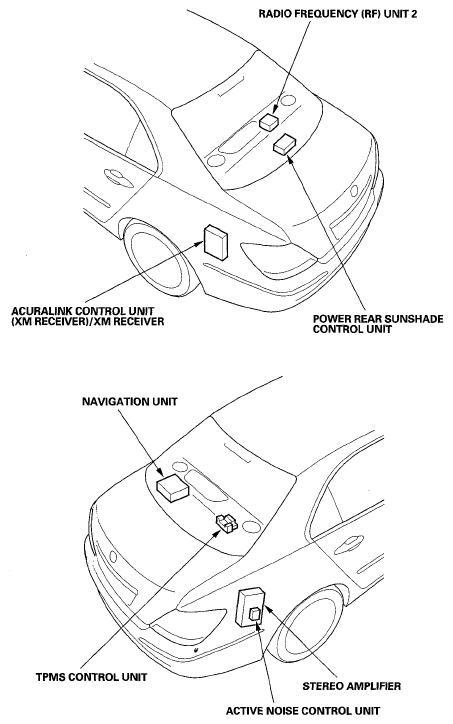

Fig 2: Identifying Relay And Control Unit Locations - Roof And Trunk (2 Of 2)
G05496723
