Throttle Actuator Control Module Subharness

THROTTLE ACTUATOR CONTROL MODULE SUBHARNESS REFERENCE

Connector or Terminal Ref Cavities Location Connects to Notes
Throttle actuator control module 8 16 Under right side of dash
C251 7 13 Under middle of dash PCM wire harness

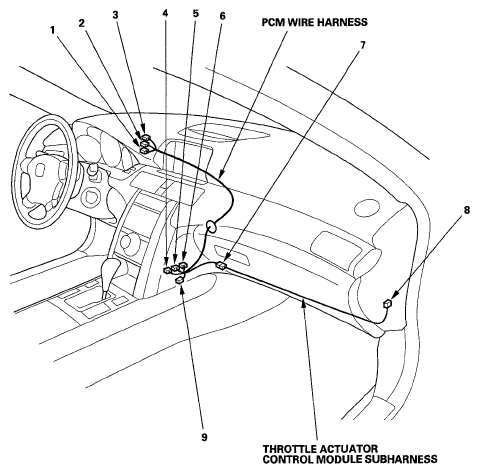

Fig 1: Identifying PCM Wire Harness Location
G05496729Courtesy of AMERICAN HONDA MOTOR CO., INC.
