Circuit Diagram

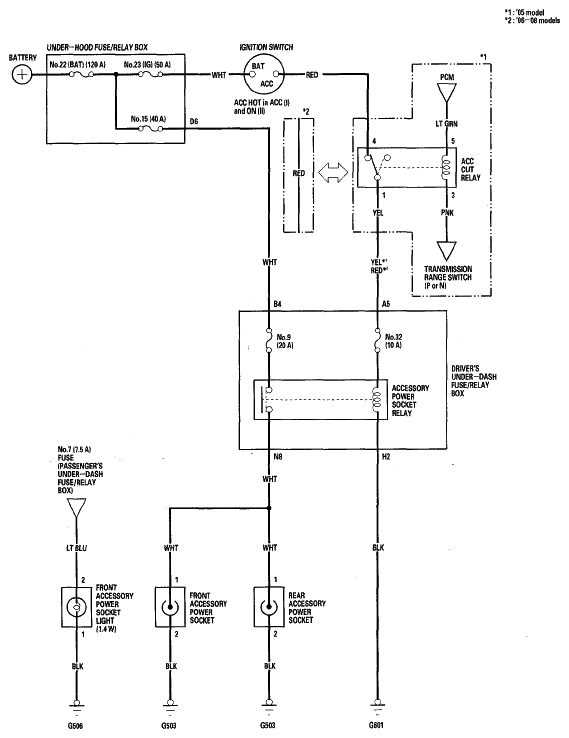

Fig 1: Accessory Power Sockets - Circuit Diagram

G05497162

Courtesy of AMERICAN HONDA MOTOR CO., INC.
