Frame Brace Replacement
Frame Brace Replacement

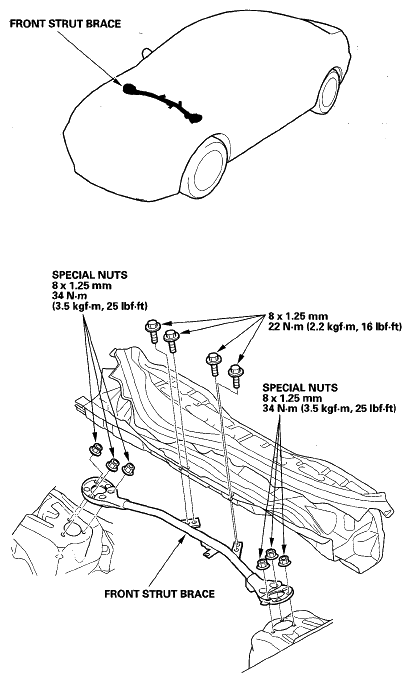

Fig 1: Frame Brace Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
