Center Console Armrest Disassembly/Reassembly

NOTE: Take care not to scratch the armrest.

Remove the console armrest (see CENTER CONSOLE ARMREST REMOVAL/INSTALLATION ).
Disassemble the console armrest.
1. Remove the armrest tray cover (A) by detaching the clips (B, C).
2. Remove the screws (D), then remove the armrest lids (E).
3. Remove the screws (F, G), then remove the armrest tray (H) from the armrest bracket (I).

  Fig 1: Exploded View Of Console Armrest Assembly And Fasteners
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disassemble the armrest lid.
1. Pry out the lock cover (A).
2. Remove the screws (B), then remove the armrest lid lock (C).
3. Release the seals (D), and remove the screws (E), then remove the armrest lid cover (F).
4. Remove the screws (G), then remove the armrest hinges (H) and armrest lid (I) from the armrest lid bracket (J).

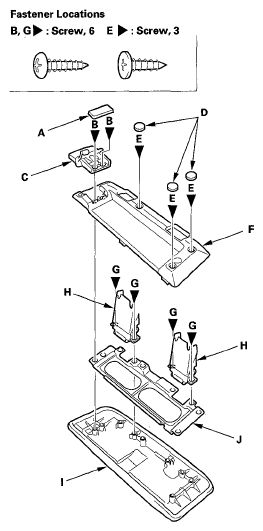

  Fig 2: Exploded View Of Armrest Lid Assembly And Fasteners
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the armrest in the reverse order of disassembly.
