Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Adaptive Cruise Control System
>>
Circuit Diagram
Circuit Diagram

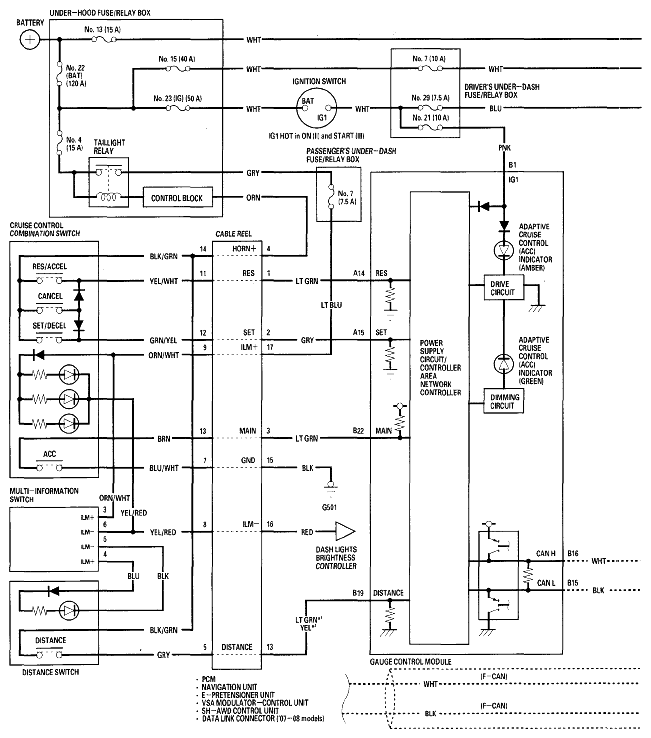

Fig 1: ACC Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

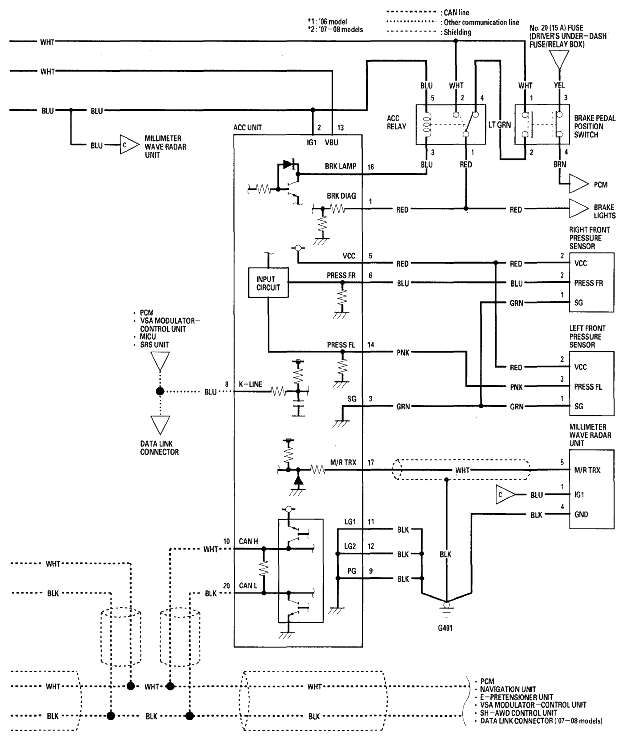

Fig 2: ACC Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
