Power Tilt/Telescopic Steering Control Unit Connector End View

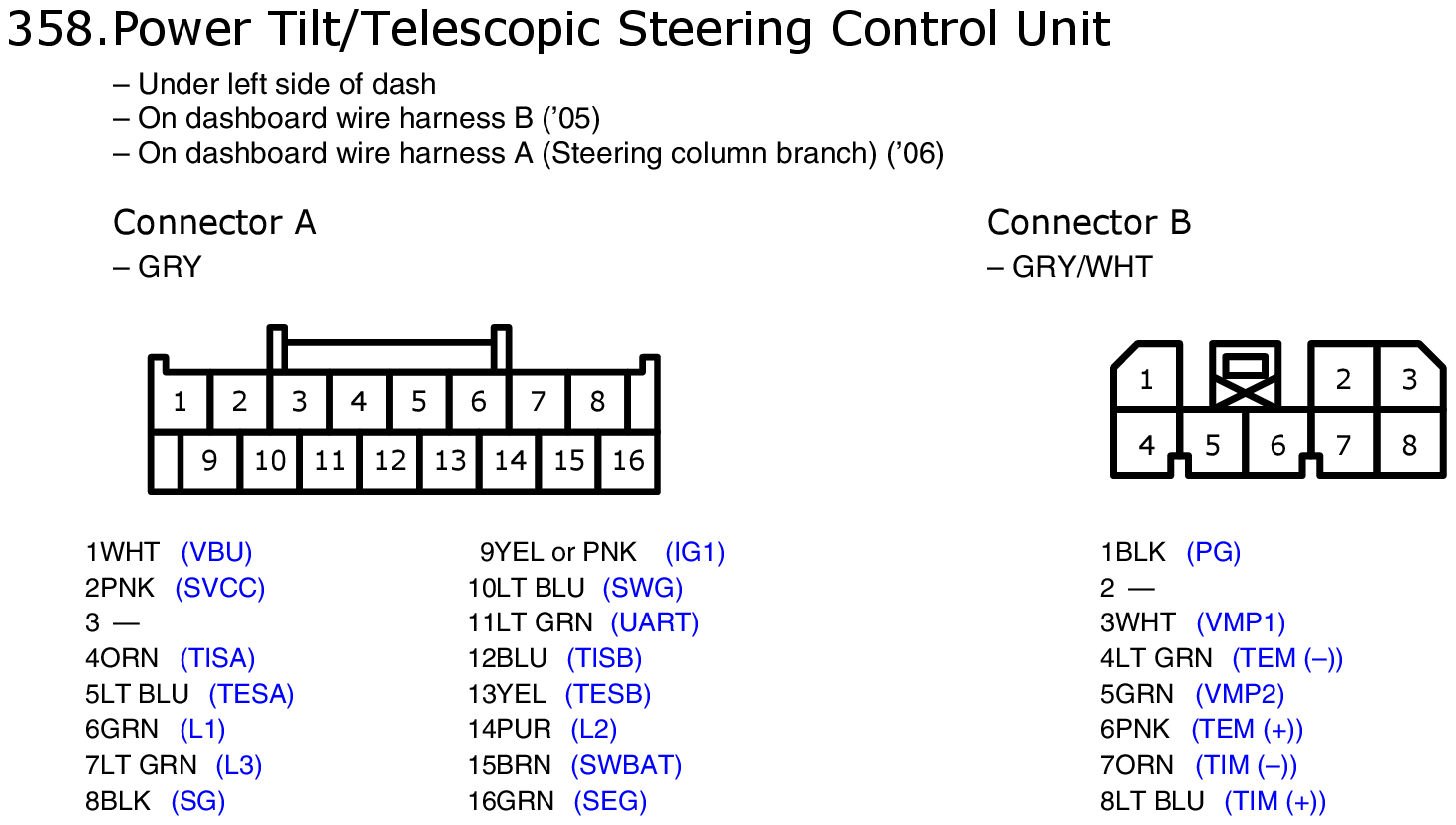

Fig 1: Power Tilt/Telescopic Steering Control Unit Connector End View
GHHW9351Courtesy of AMERICAN HONDA MOTOR CO., INC.

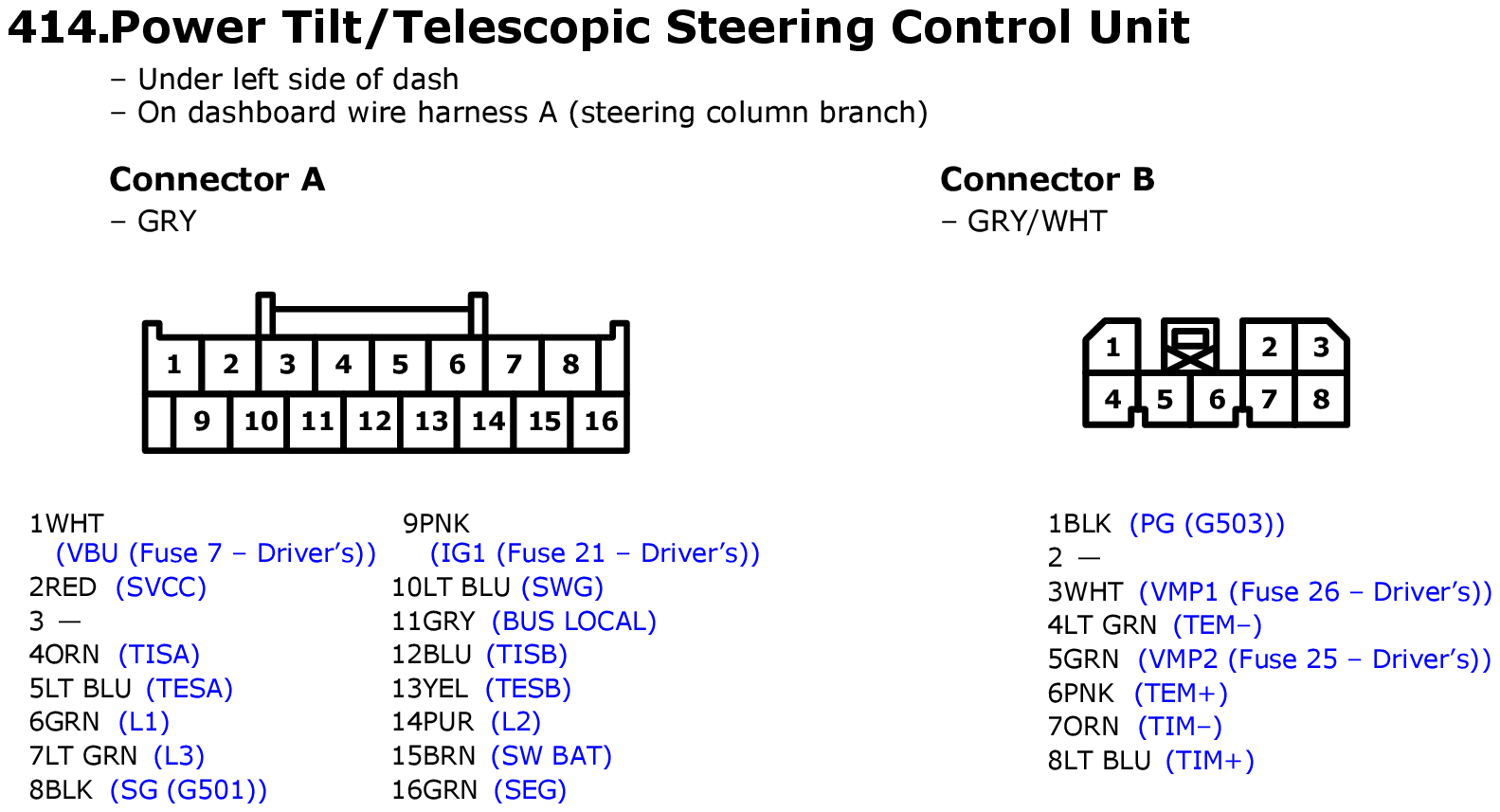

Fig 1: Power Tilt/Telescopic Steering Control Unit Connector End View
GHHW9839Courtesy of AMERICAN HONDA MOTOR CO., INC.
