Navigation Unit Connector End View

Fig 1: Navigation Unit Connector End View
GHHW9360Courtesy of AMERICAN HONDA MOTOR CO., INC.

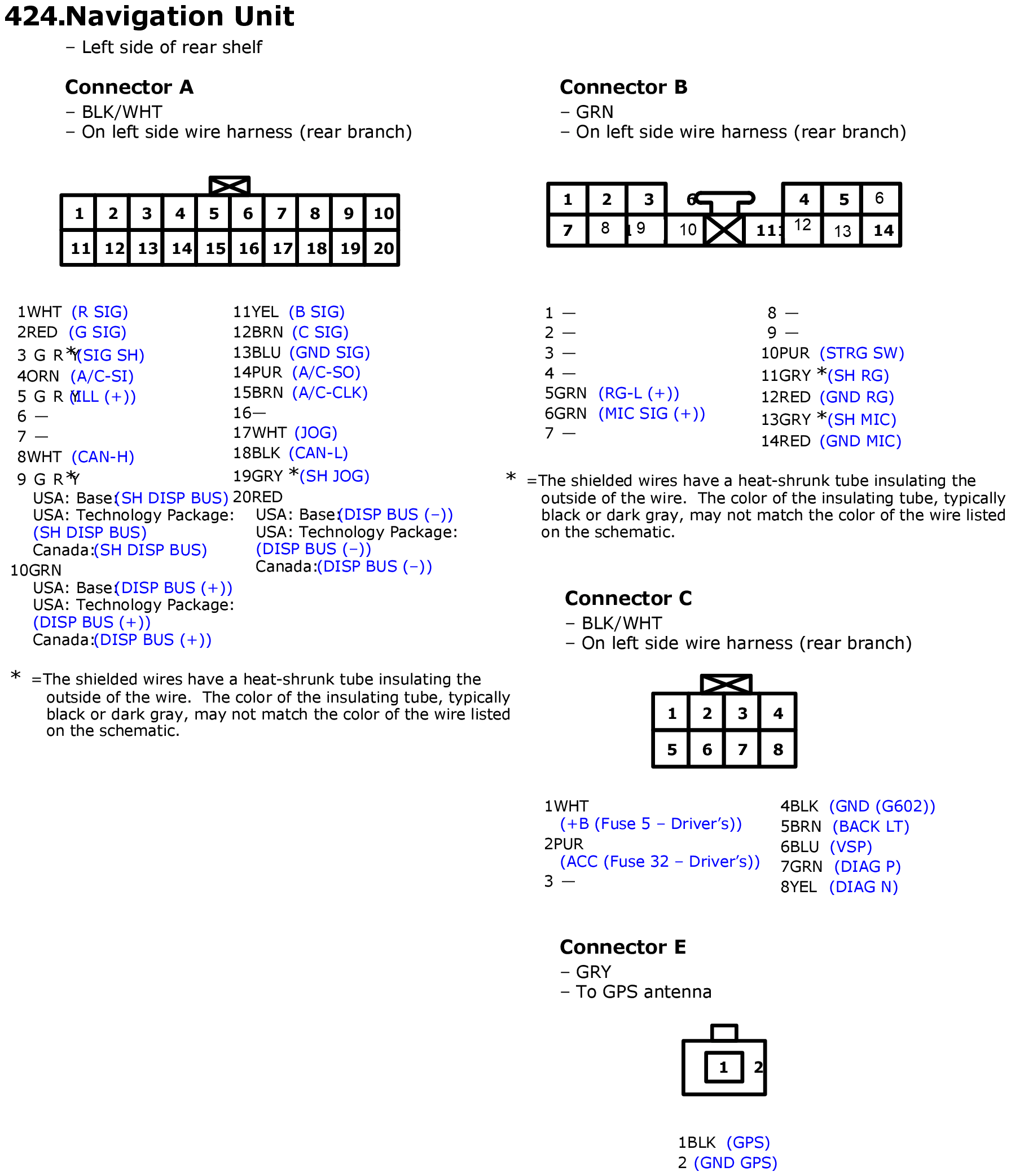

Fig 1: Navigation Unit Connector End View
GHHW9849Courtesy of AMERICAN HONDA MOTOR CO., INC.
