Navigation Service Check Connector End View

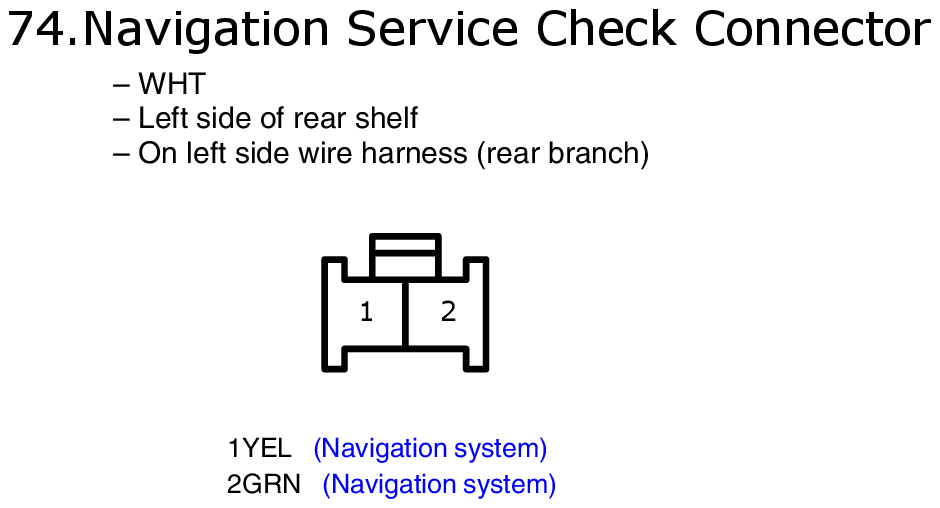

Fig 1: Navigation Service Check Connector End View
GHHW9067Courtesy of AMERICAN HONDA MOTOR CO., INC.

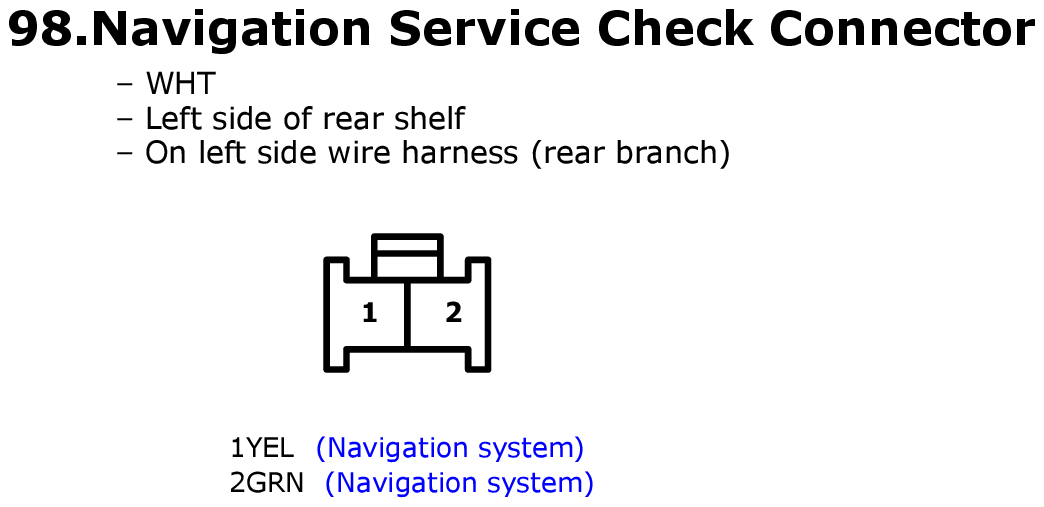

Fig 1: Navigation Service Check Connector End View
GHHW9523Courtesy of AMERICAN HONDA MOTOR CO., INC.
