Mode Control Motor Connector End View

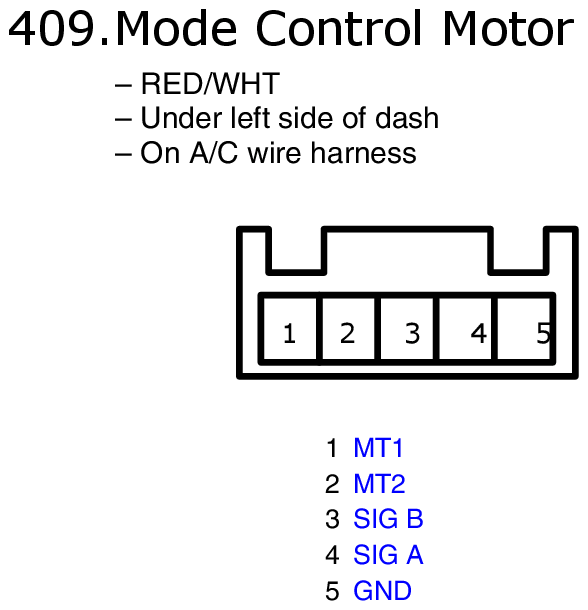

Fig 1: Mode Control Motor Connector End View
GHHW9402Courtesy of AMERICAN HONDA MOTOR CO., INC.

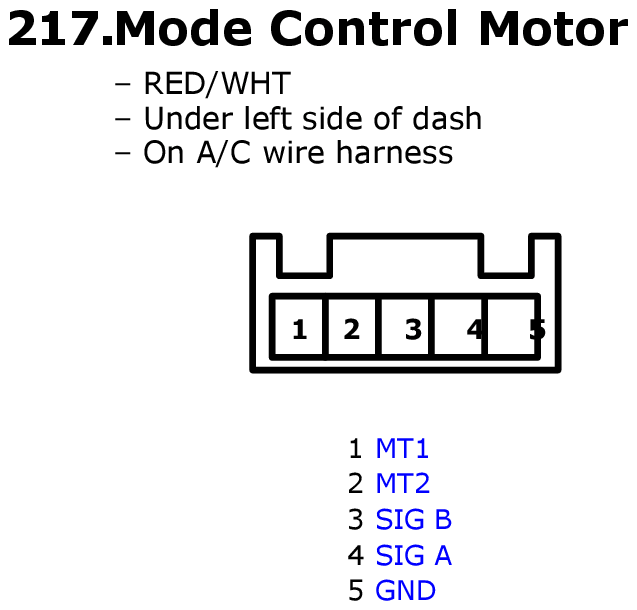

Fig 1: Mode Control Motor Connector End View
GHHW9642Courtesy of AMERICAN HONDA MOTOR CO., INC.
