Home >> Acura >> 2007 >> RL >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Left Front Turn Signal Light Connector End View

Left Front Turn Signal Light Connector End View

Fig 1: Left Front Turn Signal Light Connector End View
GHHW9138Courtesy of AMERICAN HONDA MOTOR CO., INC.

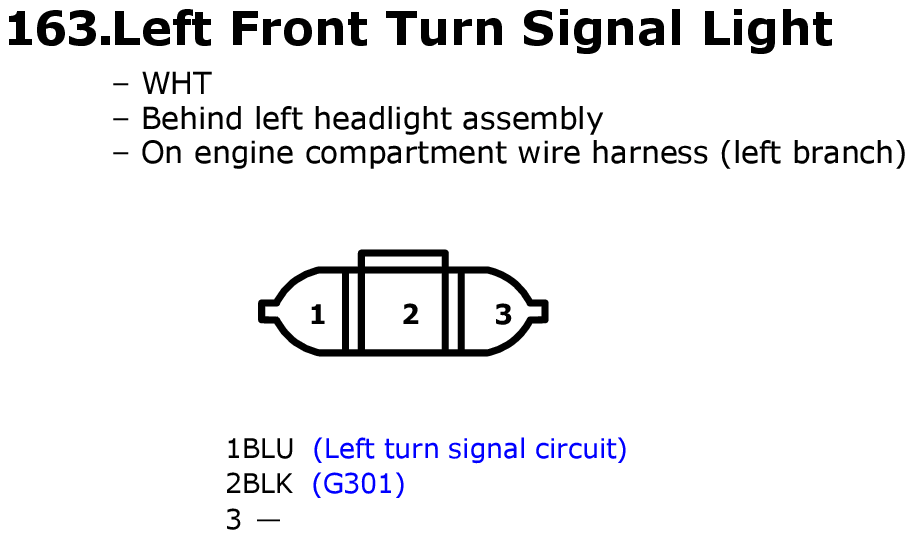

Fig 1: Left Front Turn Signal Light Connector End View
GHHW9588Courtesy of AMERICAN HONDA MOTOR CO., INC.
