Keyless Access RF Unit 2 Connector End View

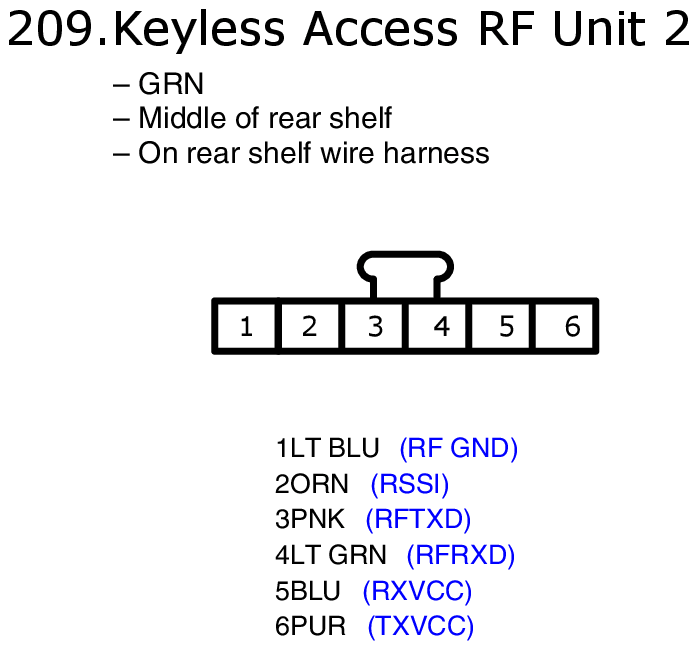

Fig 1: Keyless Access RF Unit 2 Connector End View
GHHW9202Courtesy of AMERICAN HONDA MOTOR CO., INC.

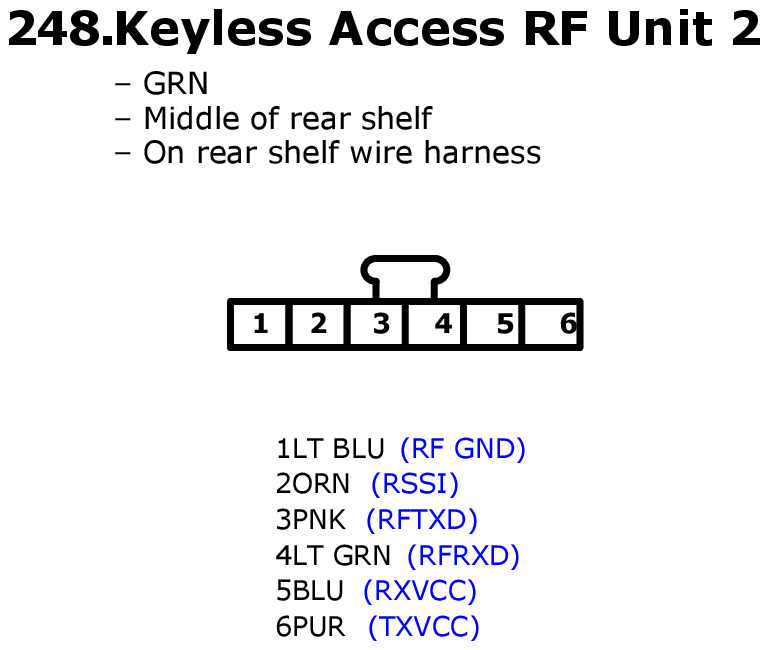

Fig 1: Keyless Access RF Unit 2 Connector End View
GHHW9673Courtesy of AMERICAN HONDA MOTOR CO., INC.
