In-Car Temperature Sensor Connector End View

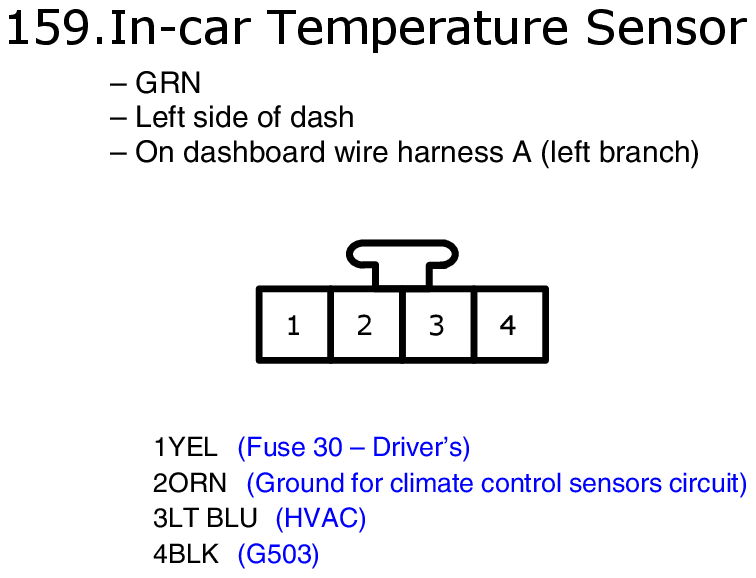

Fig 1: In-Car Temperature Sensor Connector End View
GHHW9152Courtesy of AMERICAN HONDA MOTOR CO., INC.

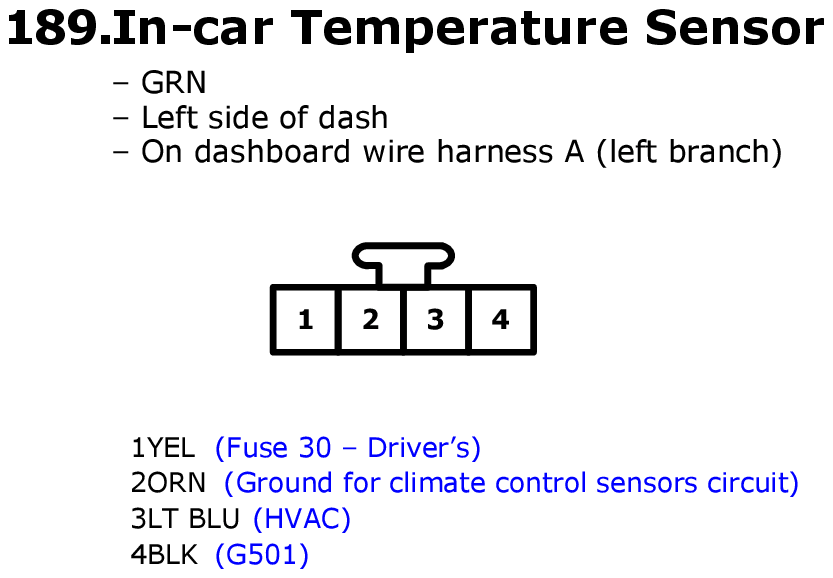

Fig 1: In-car Temperature Sensor Connector End View
GHHW9614Courtesy of AMERICAN HONDA MOTOR CO., INC.
