Immobilizer Control Unit-Receiver Connector End View

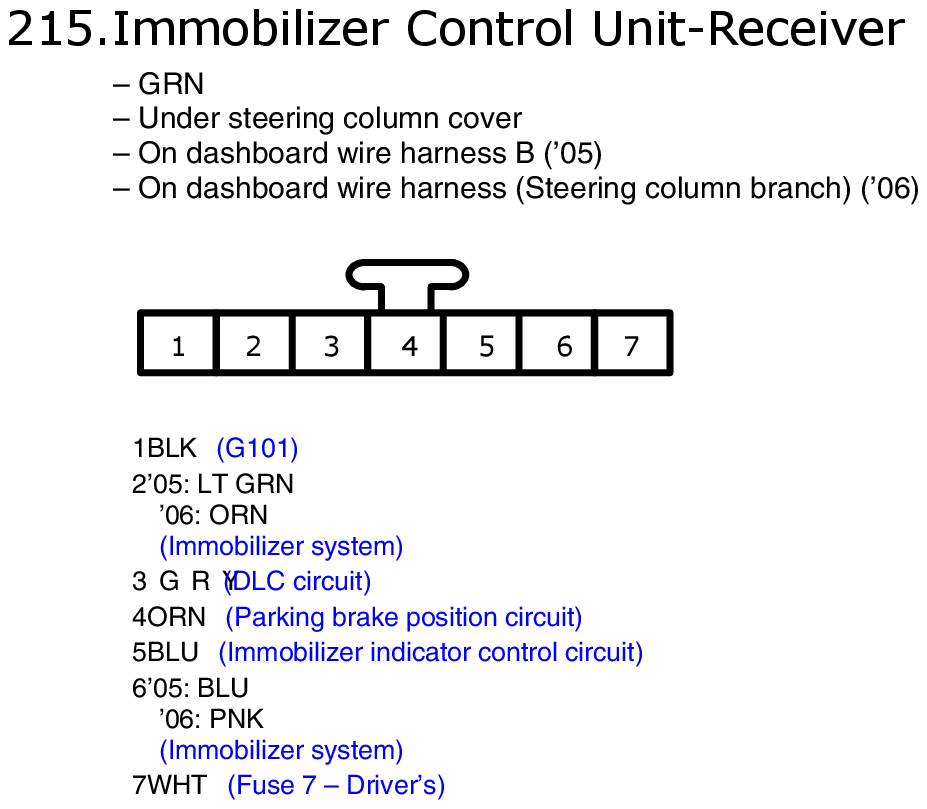

Fig 1: Immobilizer Control Unit-Receiver Connector End View
GHHW9208Courtesy of AMERICAN HONDA MOTOR CO., INC.

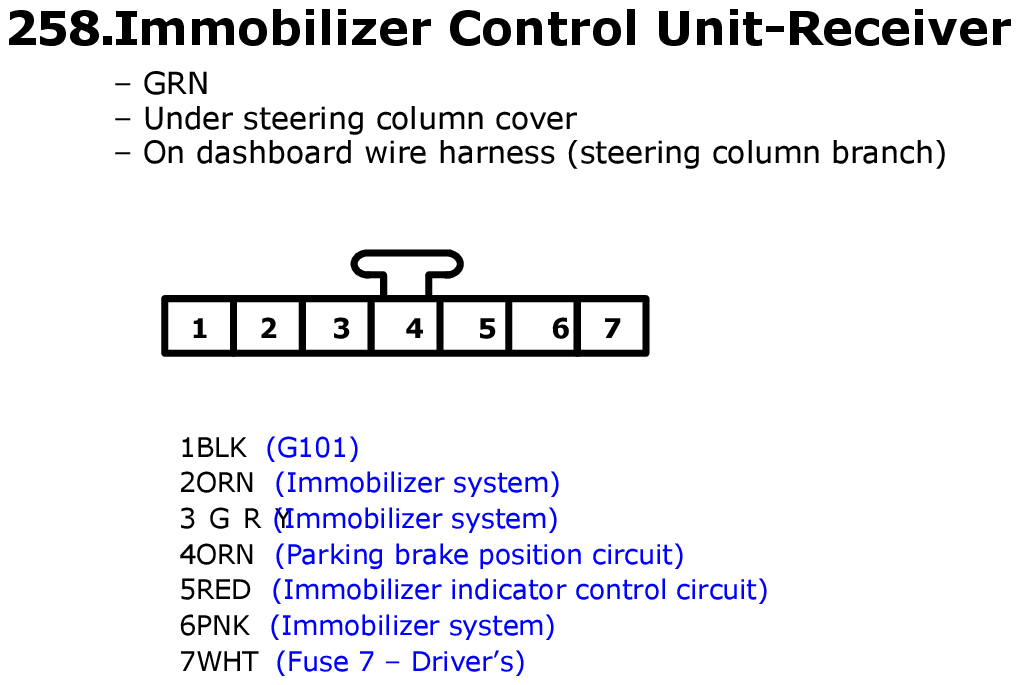

Fig 1: Immobilizer Control Unit-Receiver Connector End View
GHHW9683Courtesy of AMERICAN HONDA MOTOR CO., INC.
