Front Passenger's MPCS Unit Connector End View

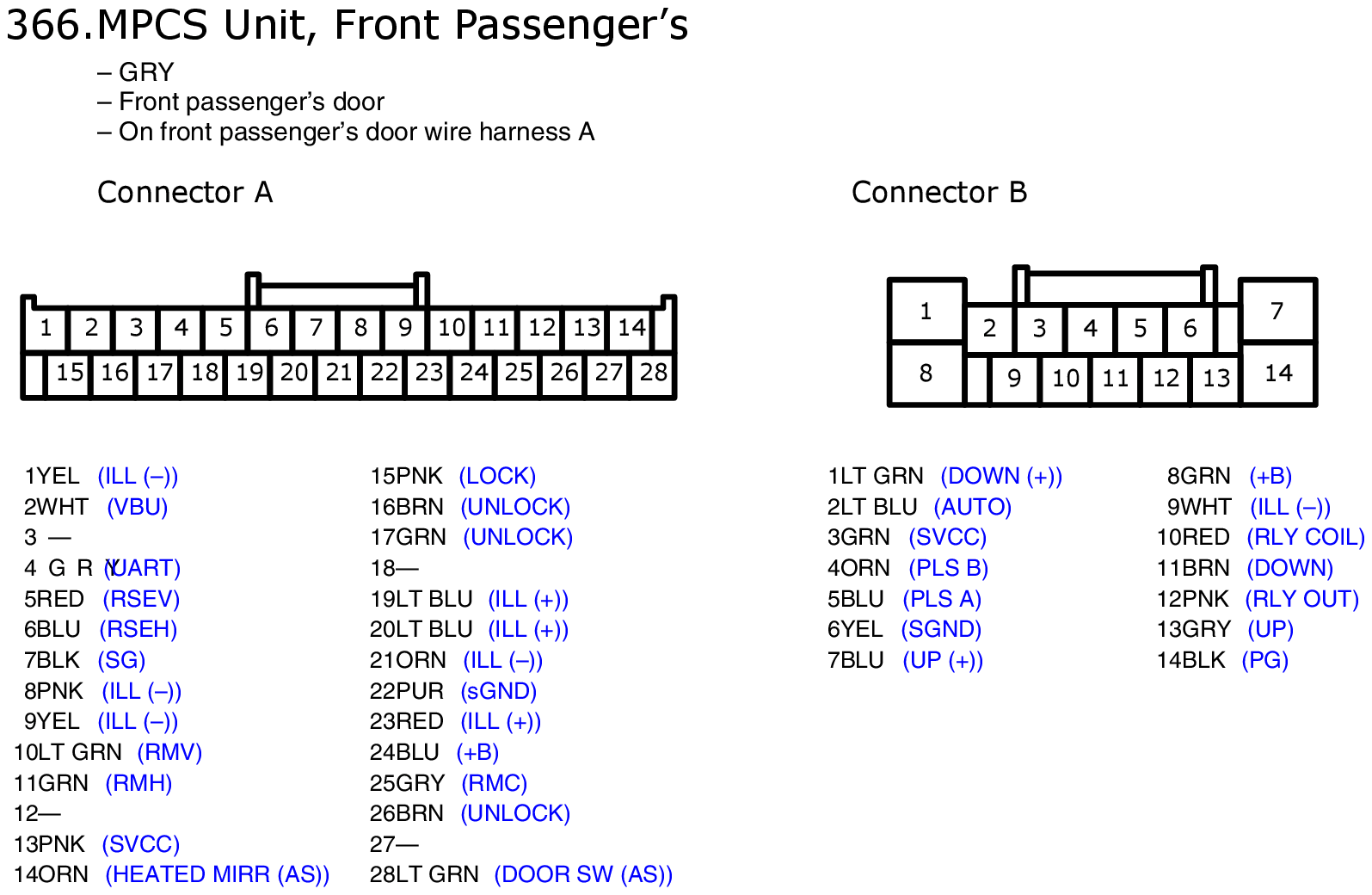

Fig 1: Front Passenger's MPCS Unit Connector End View
GHHW9359Courtesy of AMERICAN HONDA MOTOR CO., INC.

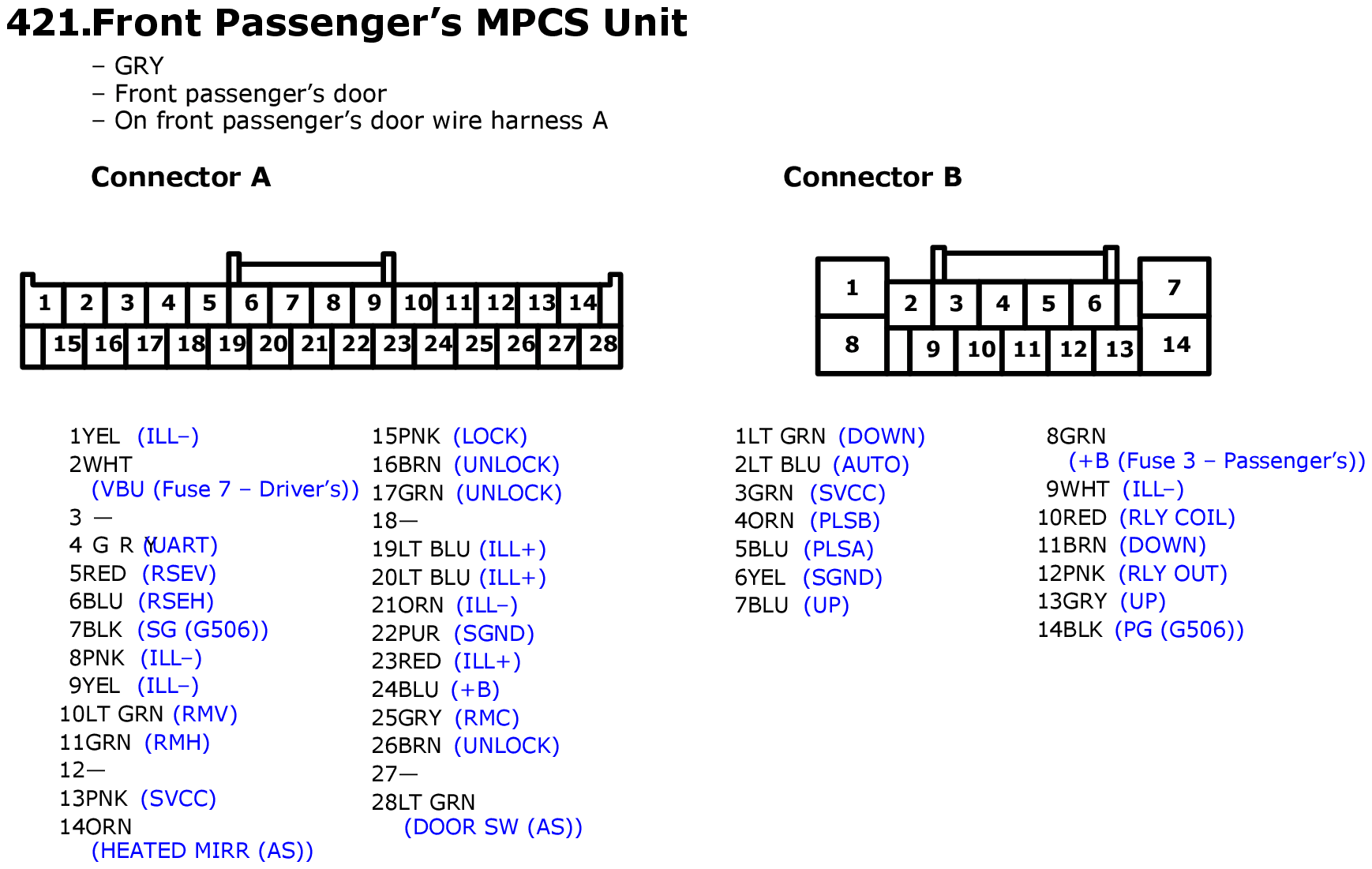

Fig 1: Front Passenger's MPCS Unit Connector End View
GHHW9846Courtesy of AMERICAN HONDA MOTOR CO., INC.
