Driver's Power Slide Position Sensor Connector End View

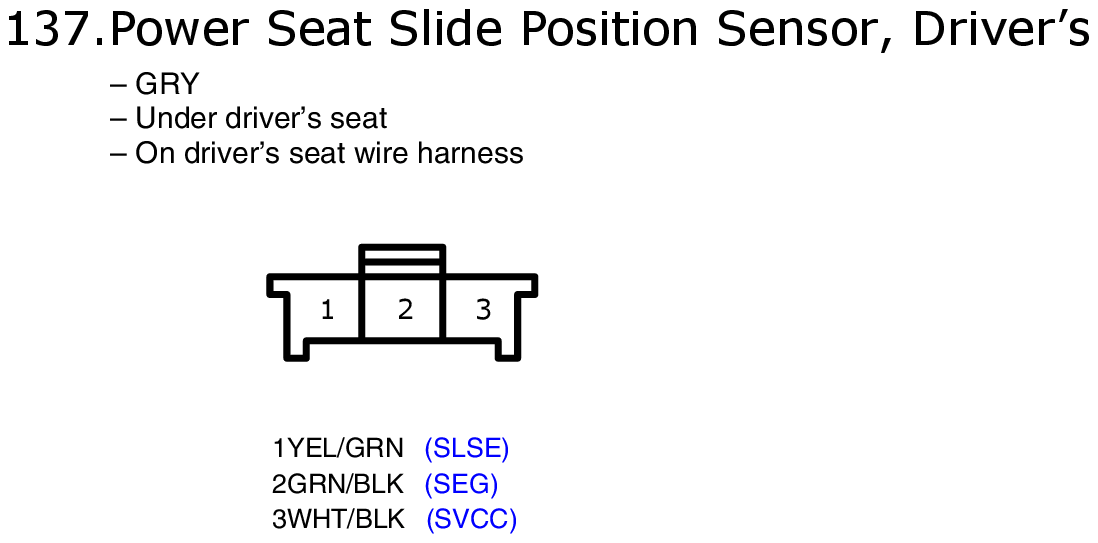

Fig 1: Driver's Power Slide Position Sensor Connector End View

GHHW9130

Courtesy of AMERICAN HONDA MOTOR CO., INC.
