Driver's MPCS Unit Connector End View

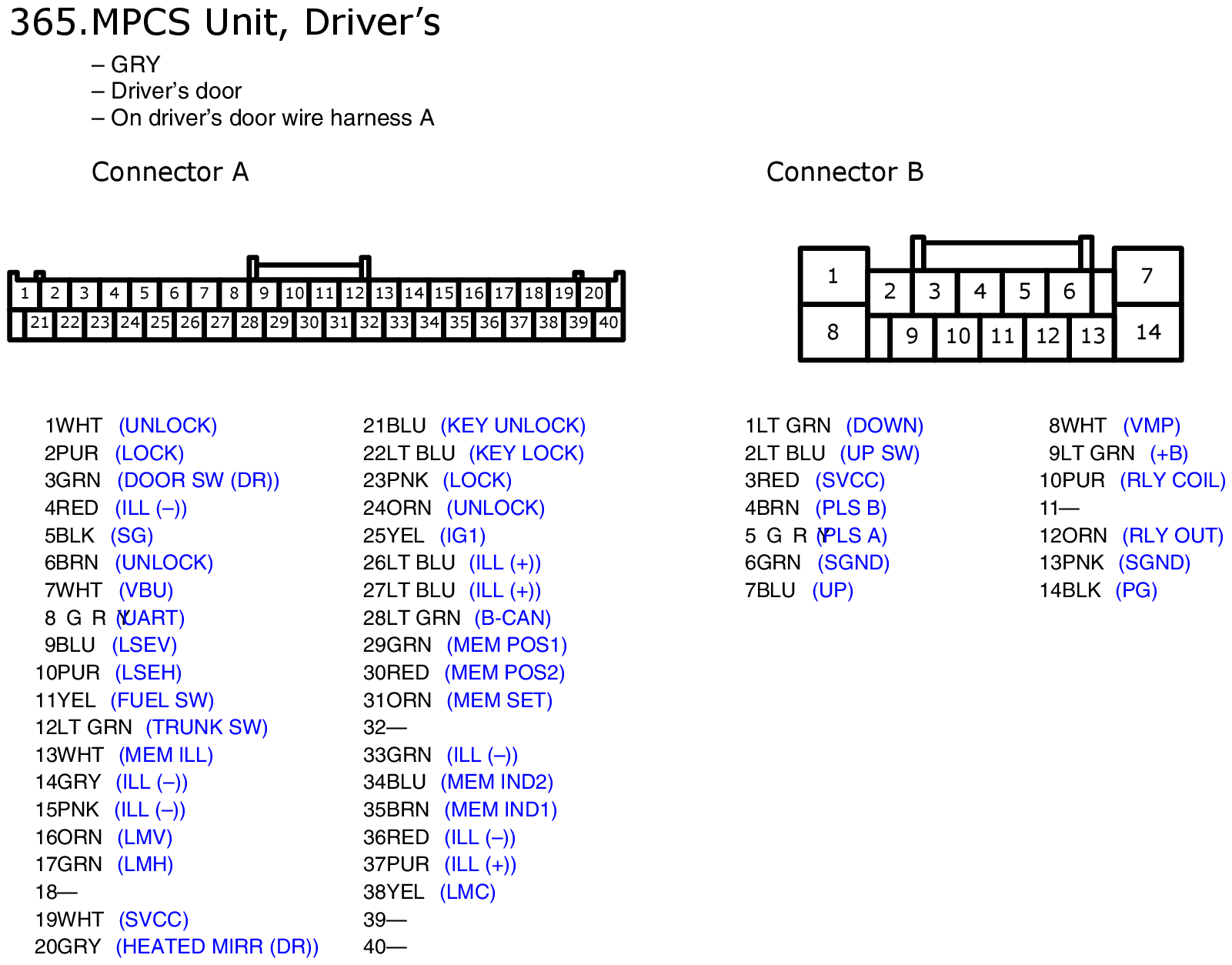

Fig 1: Driver's MPCS Unit Connector End View
GHHW9358Courtesy of AMERICAN HONDA MOTOR CO., INC.

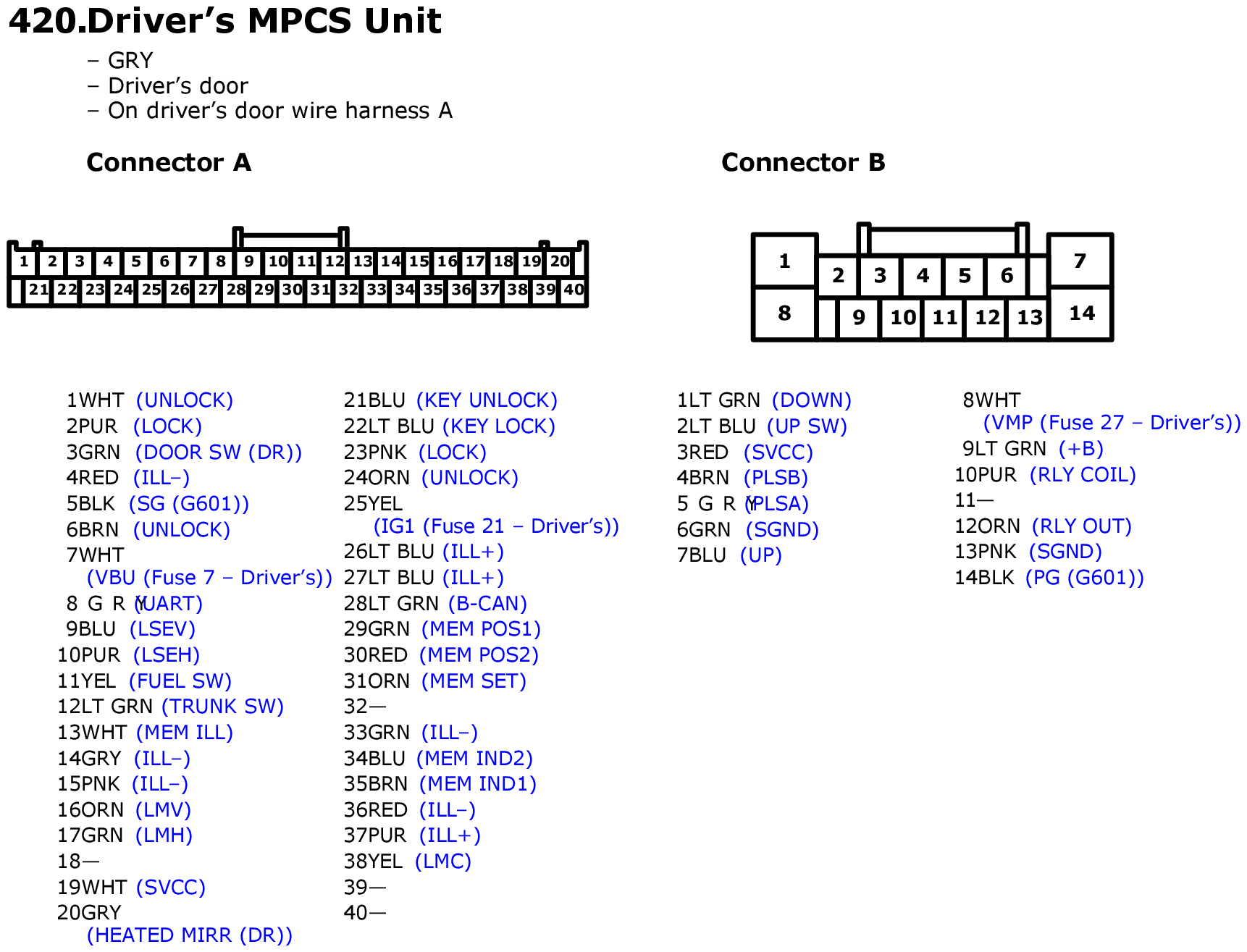

Fig 1: Driver's MPCS Unit Connector End View
GHHW9845Courtesy of AMERICAN HONDA MOTOR CO., INC.
