Climate Control Unit Connector End View

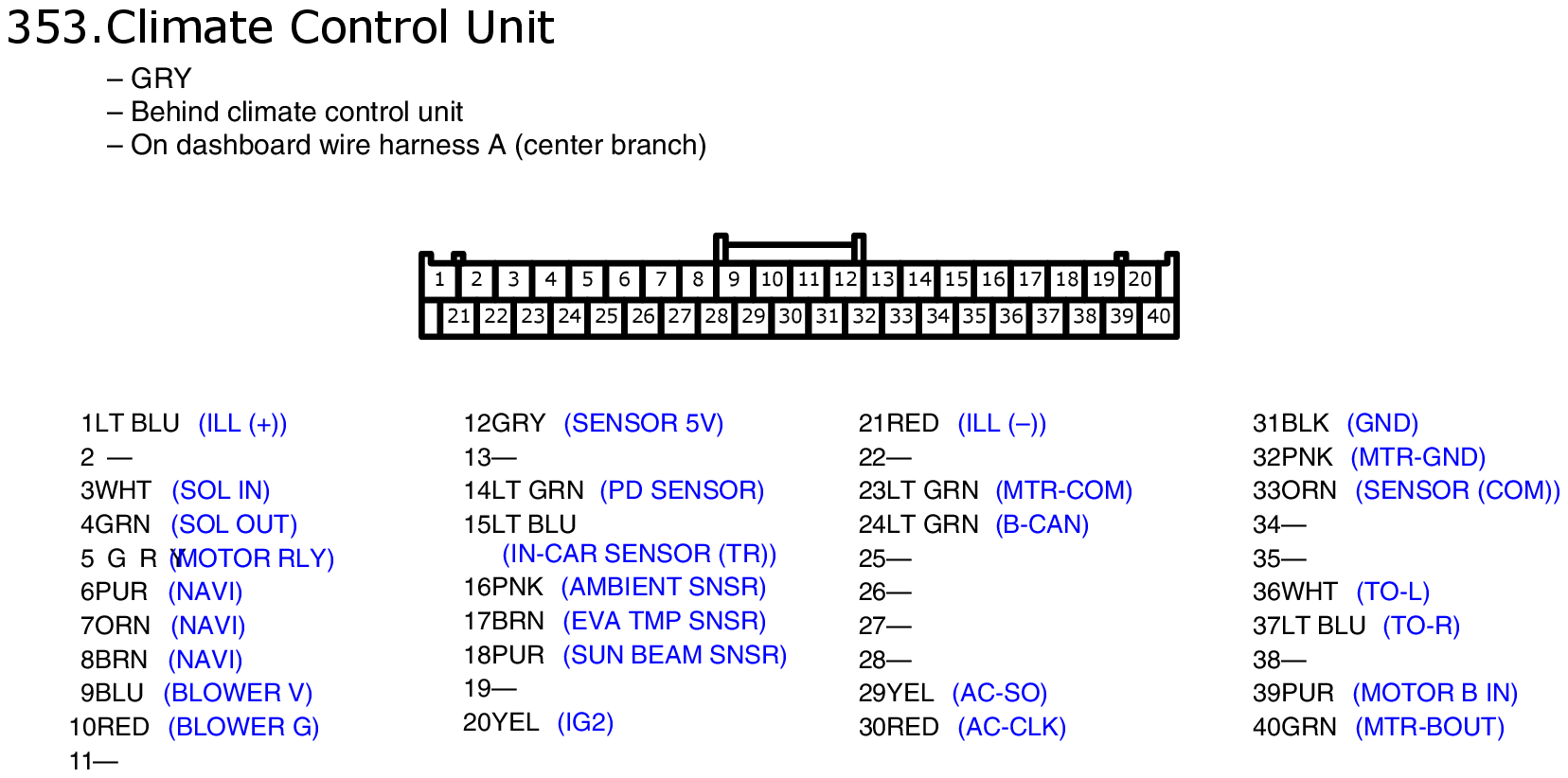

Fig 1: Climate Control Unit Connector End View
GHHW9346Courtesy of AMERICAN HONDA MOTOR CO., INC.

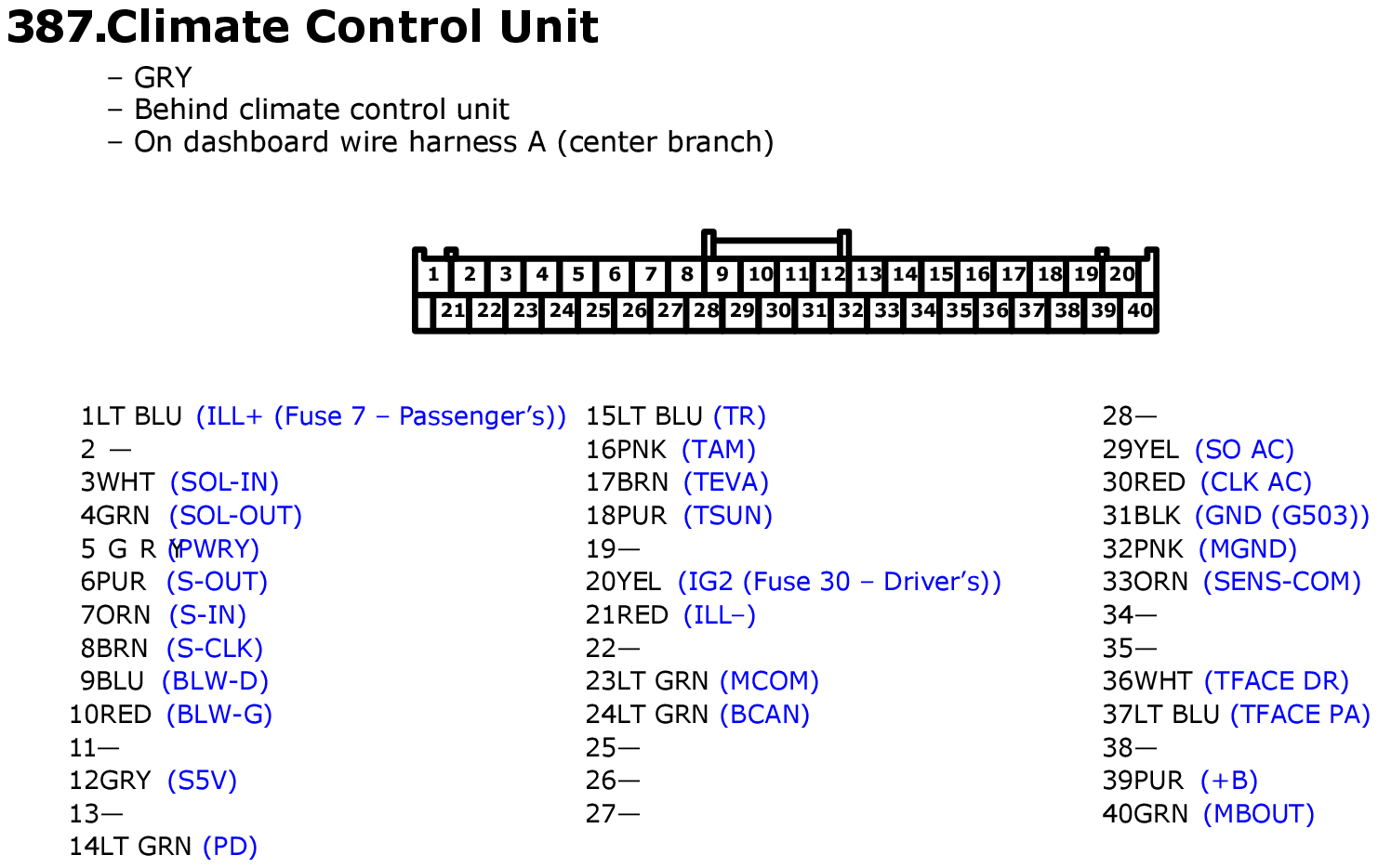

Fig 1: Climate Control Unit Connector End View
GHHW9812Courtesy of AMERICAN HONDA MOTOR CO., INC.
