Back-up Sensor Control Unit (Acura Accessory) Connector End View

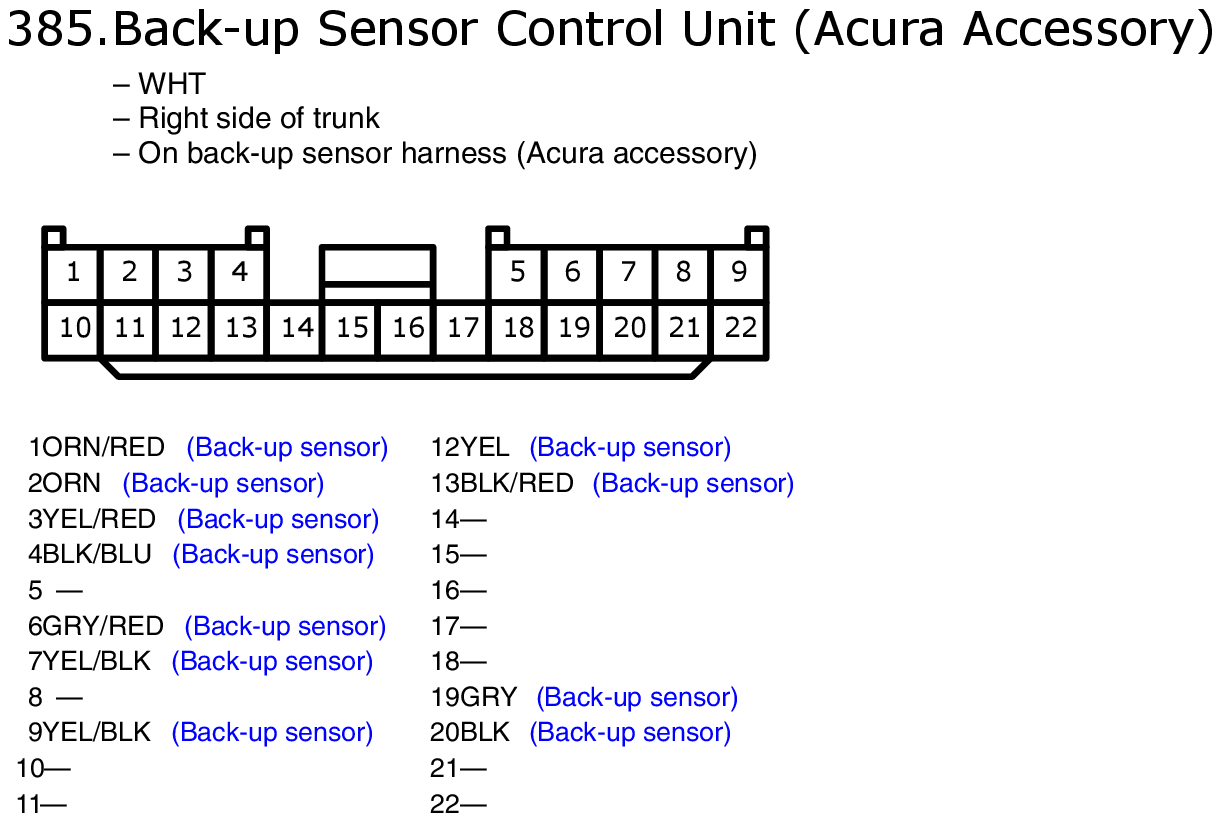

Fig 1: Back-up Sensor Control Unit (Acura Accessory) Connector End View
GHHW9378Courtesy of AMERICAN HONDA MOTOR CO., INC.

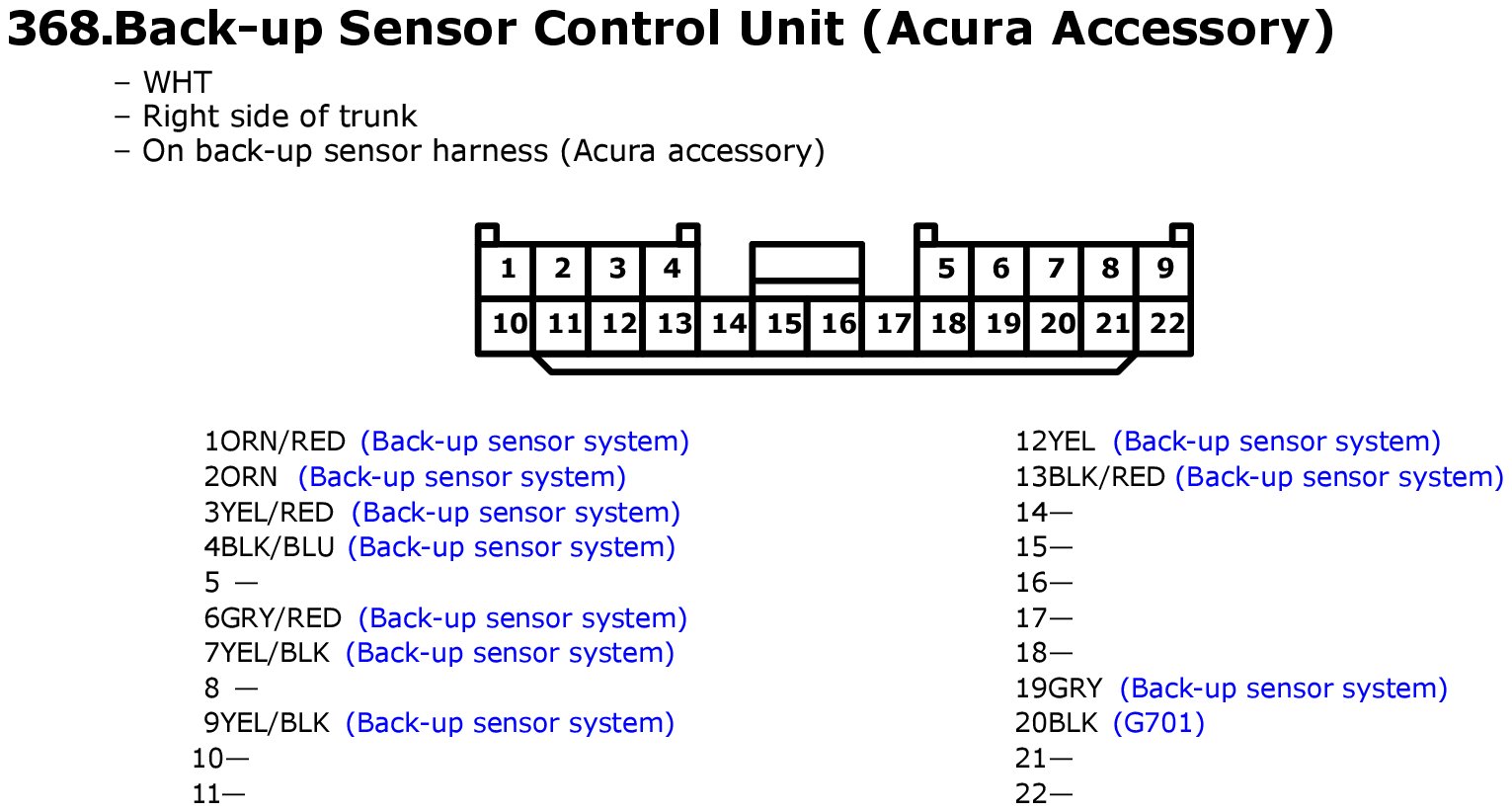

Fig 1: Back-up Sensor Control Unit (Acura Accessory) Connector End View
GHHW9793Courtesy of AMERICAN HONDA MOTOR CO., INC.
