Gauge Control Module Connector End View

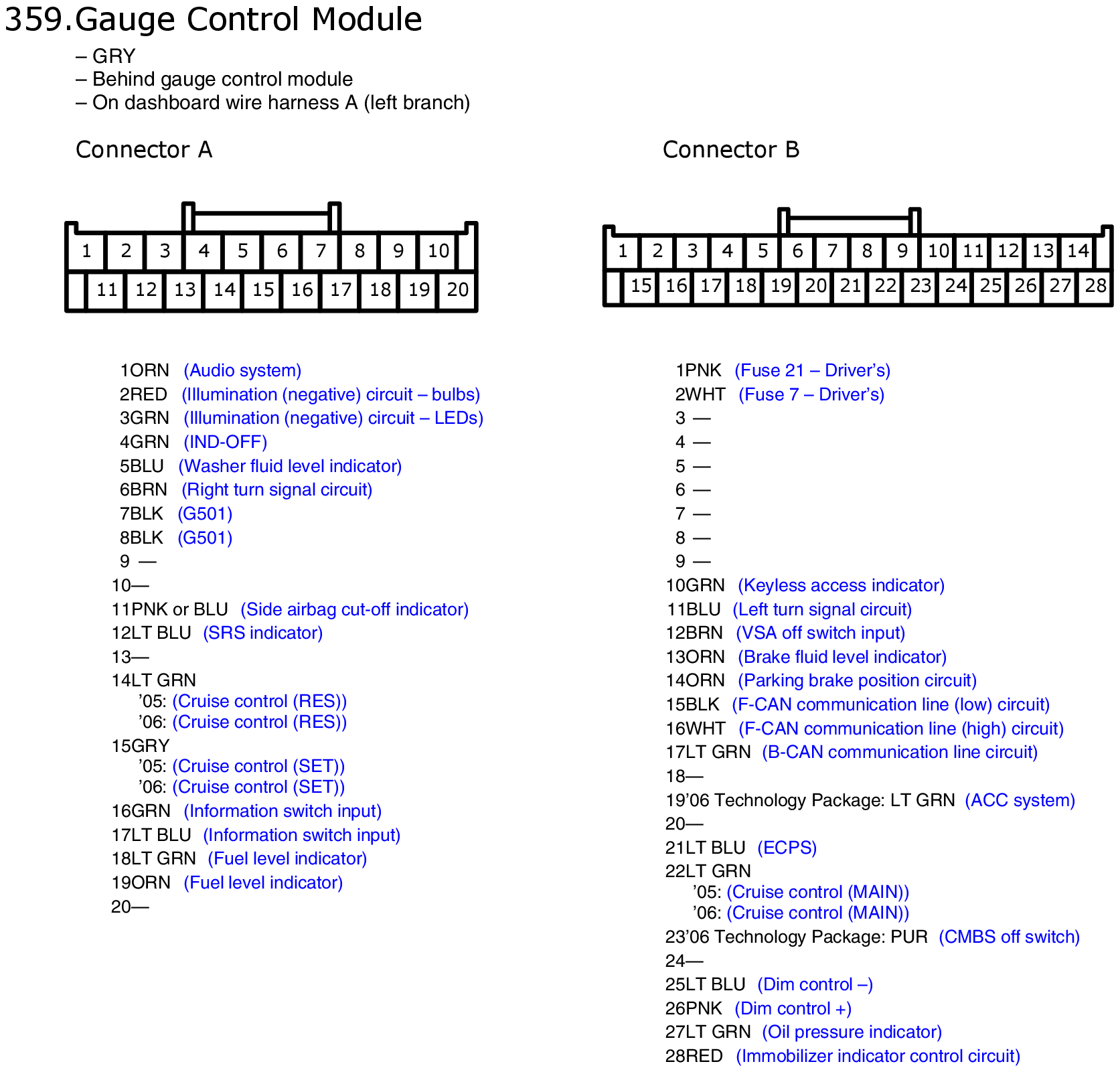

Fig 1: Gauge Control Module Connector End View
GHHW9352Courtesy of AMERICAN HONDA MOTOR CO., INC.

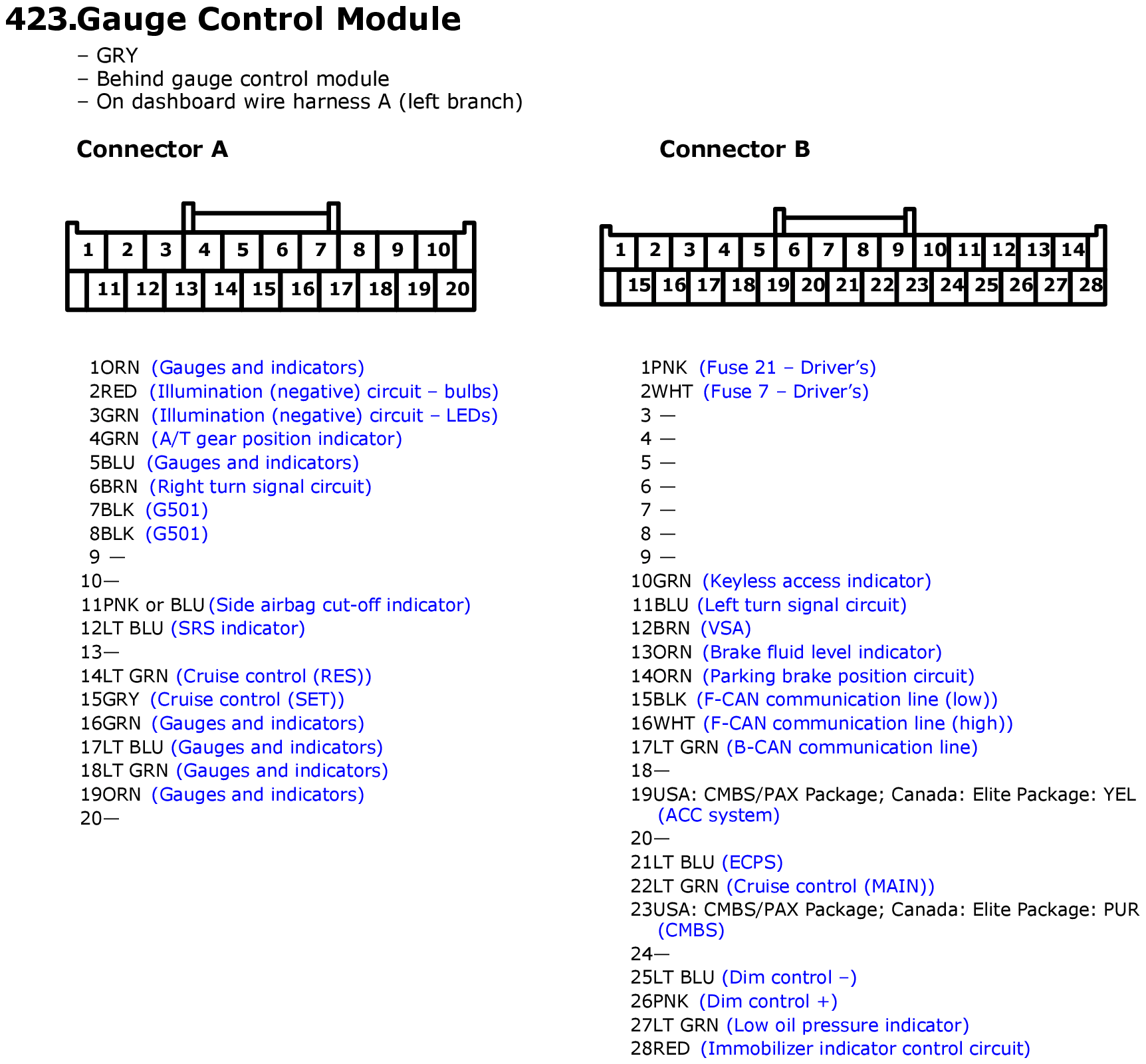

Fig 1: Gauge Control Module Connector End View
GHHW9848Courtesy of AMERICAN HONDA MOTOR CO., INC.
