Fuel Pump Control Module Connector End View

Fig 1: Fuel Pump Control Module Connector End View
GHHW9226Courtesy of AMERICAN HONDA MOTOR CO., INC.

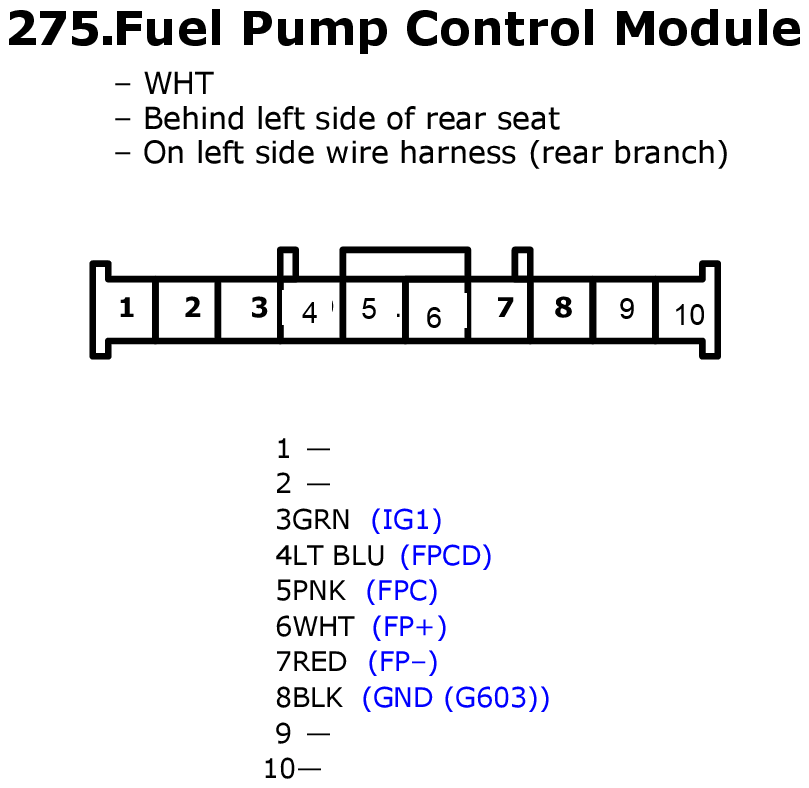

Fig 1: Fuel Pump Control Module Connector End View
GHHW9700Courtesy of AMERICAN HONDA MOTOR CO., INC.
