DRL Relay and Fan Control Relay Connector End View

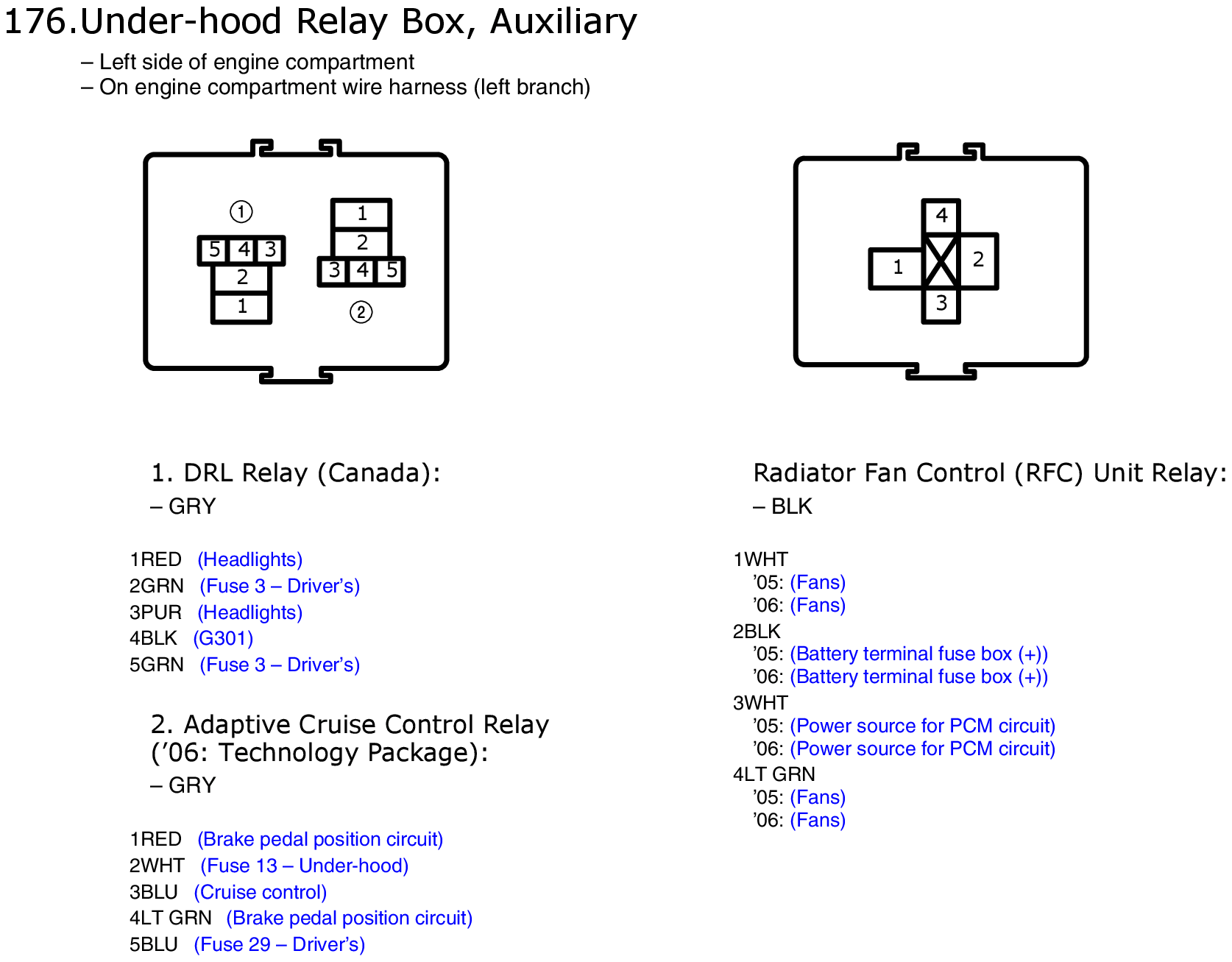

Fig 1: DRL Relay and Fan Control Relay Connector End View

GHHW9169

Courtesy of AMERICAN HONDA MOTOR CO., INC.
