Automatic Lighting Sensor/Sunlight Sensor Connector End View

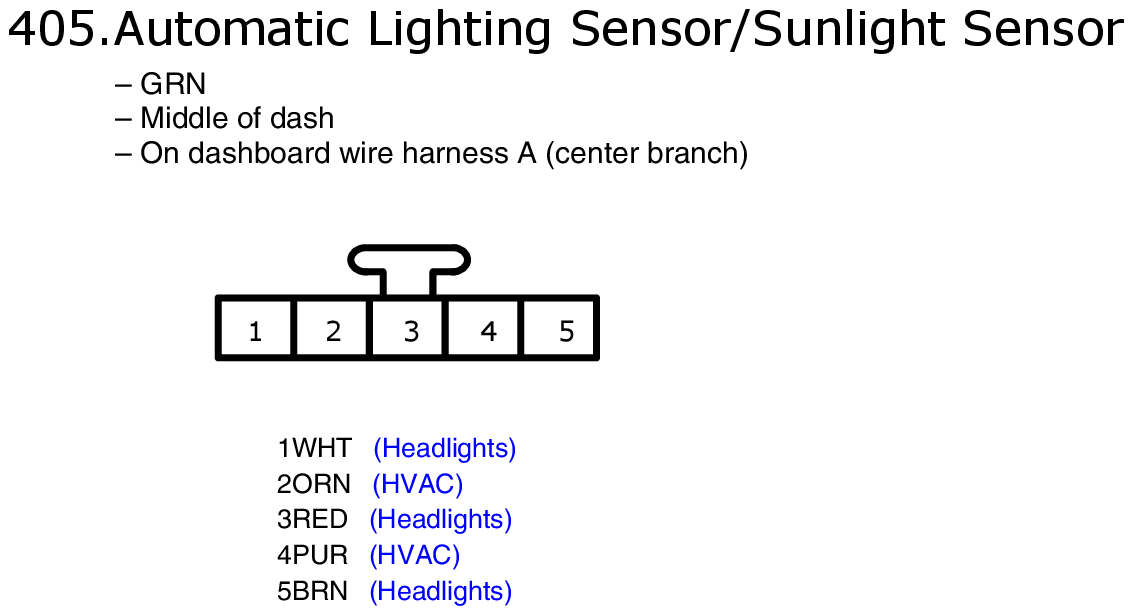

Fig 1: Automatic Lighting Sensor/Sunlight Sensor Connector End View
GHHW9398Courtesy of AMERICAN HONDA MOTOR CO., INC.

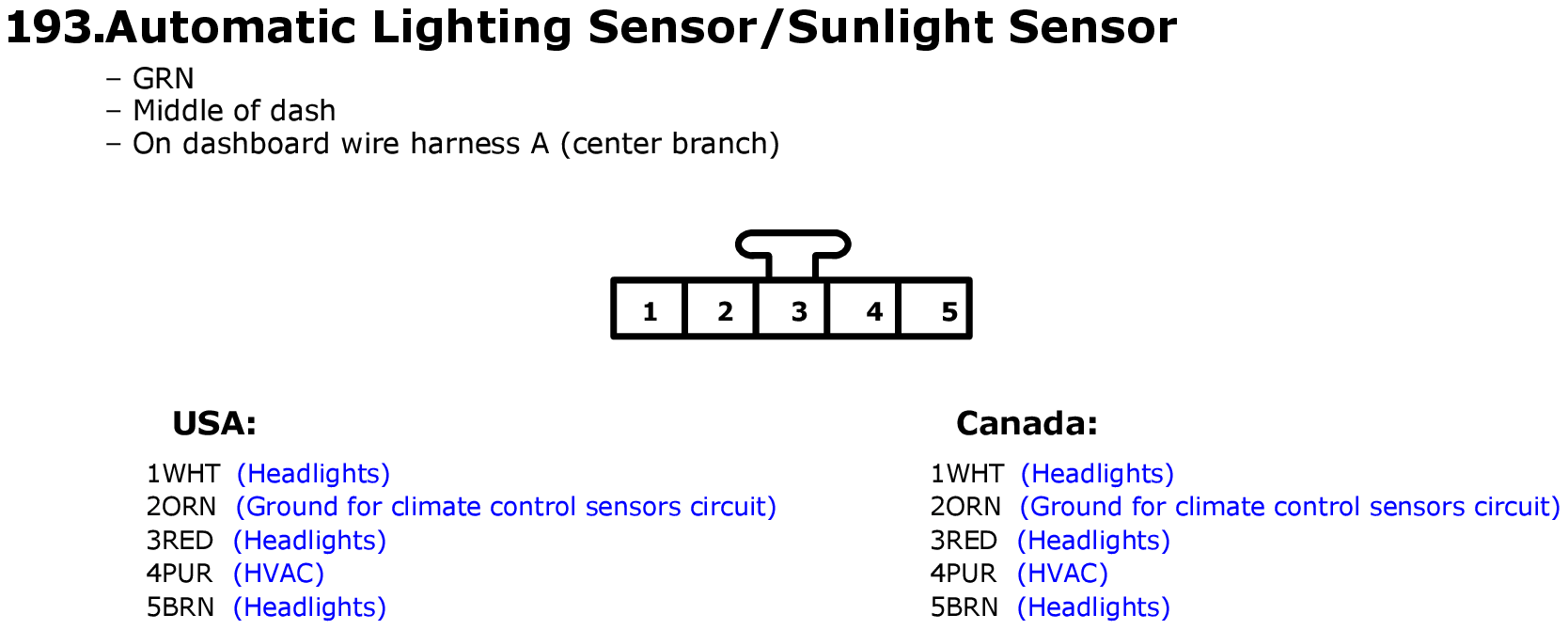

Fig 1: Automatic Lighting Sensor/Sunlight Sensor Connector End View
GHHW9618Courtesy of AMERICAN HONDA MOTOR CO., INC.
