Adaptive Front Lighting Control Unit Connector End View

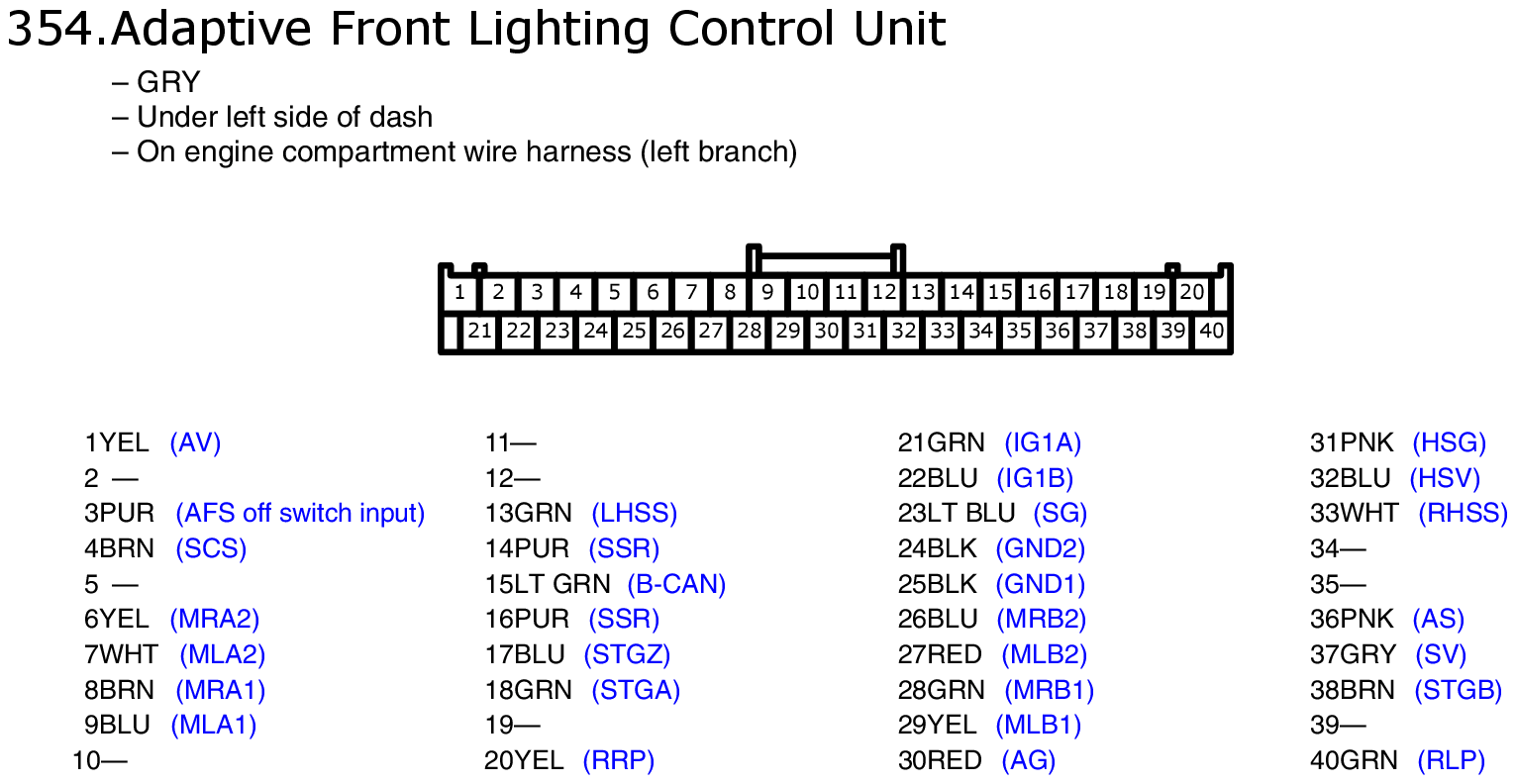

Fig 1: Adaptive Front Lighting Control Unit Connector End View

GHHW9347

Courtesy of AMERICAN HONDA MOTOR CO., INC.
