Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
AcuraLink Control Unit (XM Receiver) (USA: Technology Package) Connector End View
AcuraLink Control Unit (XM Receiver) (USA: Technology Package) Connector End View

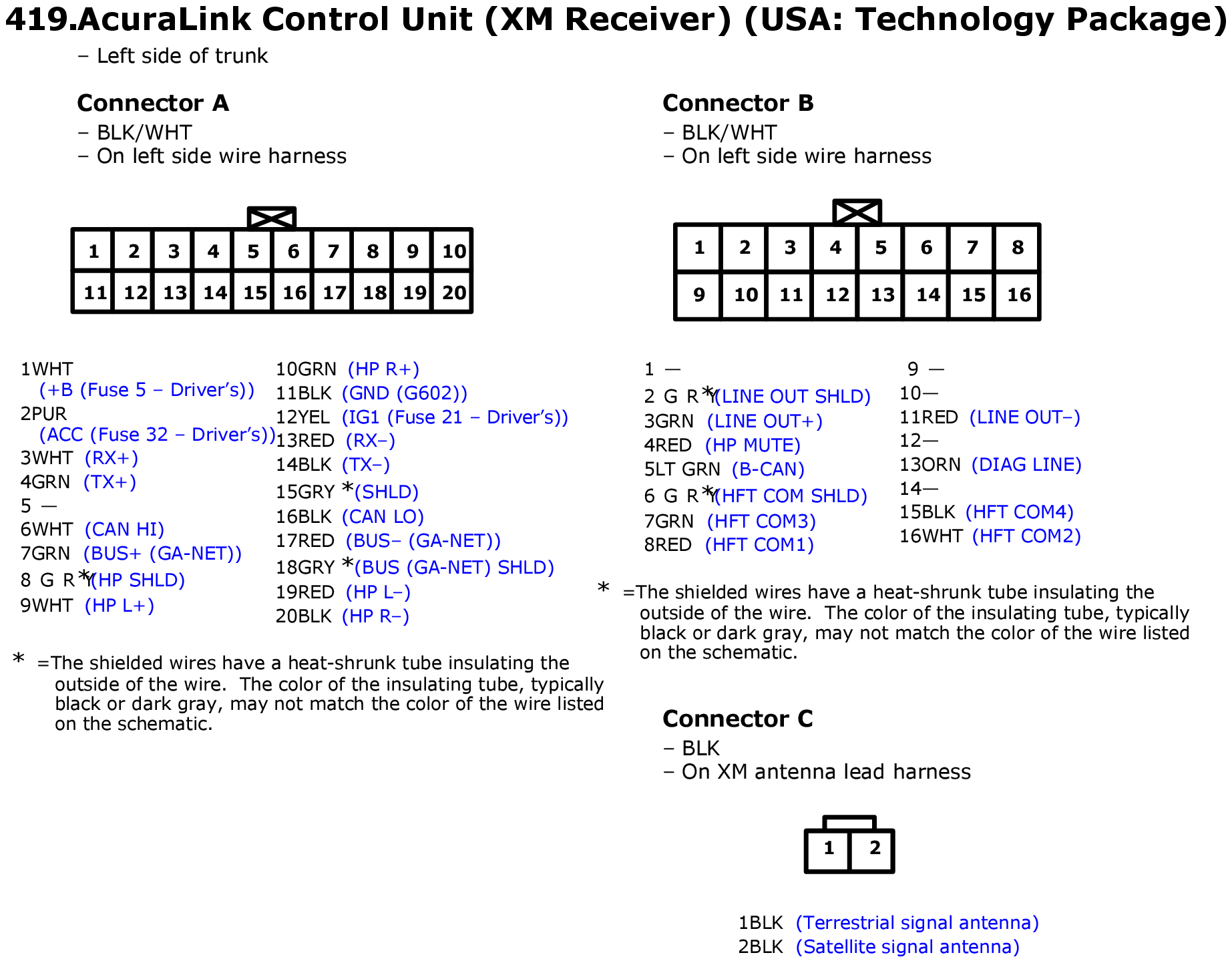

Fig 1: AcuraLink Control Unit (XM Receiver) (USA: Technology Package) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
