Throttle Actuator Control Module (USA: Base, Technology Package; Canada: Base) Connector End View

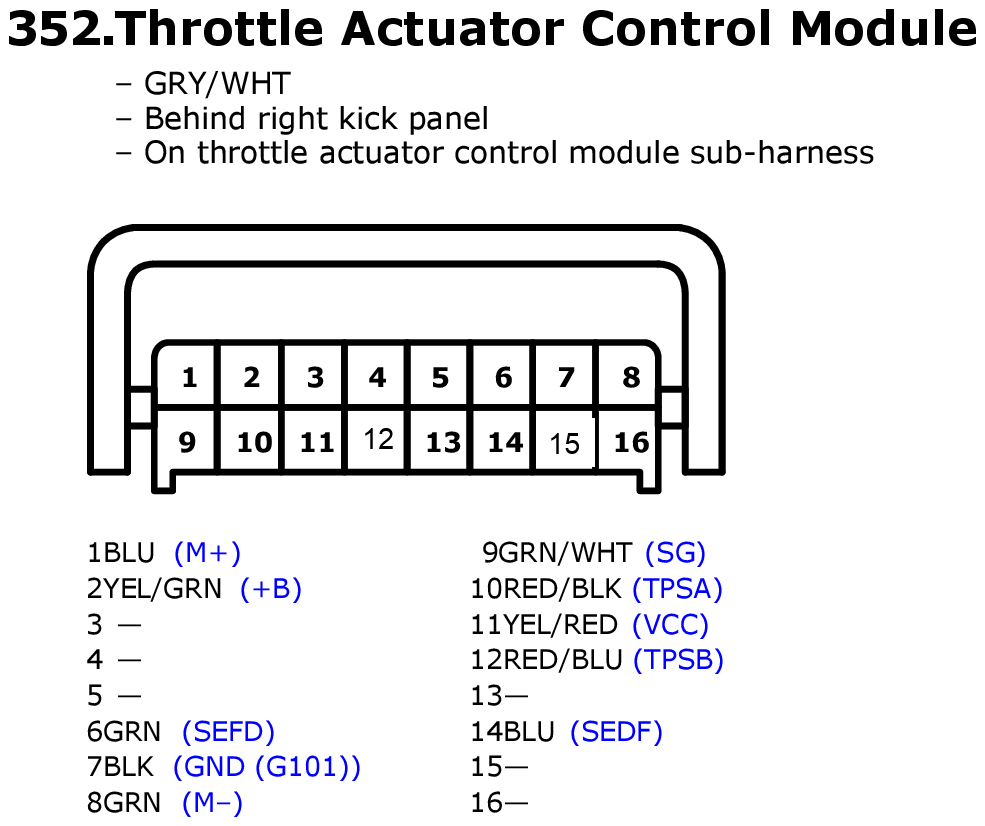

Fig 1: Throttle Actuator Control Module (USA: Base, Technology Package; Canada: Base) Connector End View
GHHW9777Courtesy of AMERICAN HONDA MOTOR CO., INC.
